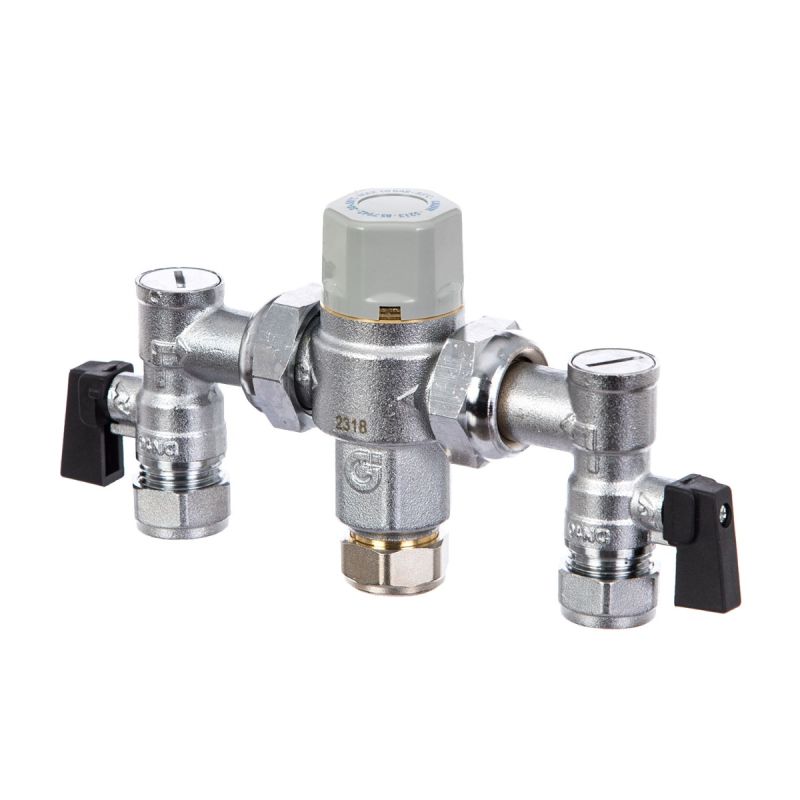

Altecnic 5213 Thermostatic Mixing Valve and MX Valve 15mm - CA-100827

£50.98 (Inc. VAT)

In Stock

FREE DELIVERY

Description

Key Features

  • Maintains hot water at a constant and safe temperature — when hot and cold water variations happen
  • Includes MX valves — catches debris and lets you shut off cold and hot water separately
  • Failsafe design — shuts off the mixed water flow if there's a disruption in the hot or cold water supply
  • Safe for use in healthcare premises, hospitals, care homes, and schools — meets high safety standards
  • Materials — body (DZR - chrome plated), springs (stainless steel), and seals (EPDM)
  • Suitability — domestic and commercial housing
  • 15mm diameter — fits 15mm pipework

Guarantee

  • 5 years

What's Included

This Altecnic thermostatic mixing valve blends hot and cold water to deliver a safe, consistent outlet temperature. It is particularly well-suited to systems where flow rates may fluctuate or where there are variations in hot and cold water supplies.

Built-In MX Valve

The included MX valve lets you shut off cold and hot water individually, prevents backflow between supplies, catches debris to protect the thermostatic mixing valve, and allows temperature/pressure testing.

Failsafe Design

This valve features an integral failsafe mechanism that automatically shuts off the mixed water flow in the event of a disruption to either the hot or cold water supply. This helps protect users from the risk of scalding or sudden cold shock.

Meets Safety Standards

For added peace of mind, this valve complies with a range of recognised safety standards, including BS EN 1111:2017, BS EN 1287:2017, the TMV2 Type Scheme, and is WRAS approved. It has been independently tested and approved as a Type 2 valve under the TMV2 scheme by WRc-NSF, and has also been tested and approved under the TMV3 scheme.

Order Yours Today

Suitable for both domestic and commercial applications, this thermostatic mixer valve can be used with plumbing outlets such as wash basins, showers, baths and bidets. Add yours to your basket today for secure and reliable delivery.

Specifications

 Back

Technical

Altecnic 5213 Thermostatic Mixing Valve and MX Valve 15mm - CA-100827 – Technical Specifications
Weight (Kg) 0.65
Diameter (mm) 15
EAN 5056902420670
Colour Chrome
Warranty (Years) 5
MPN CA-100827
Product Code PNCA100827
Valve Type Thermostatic Mixing Valve & MX Valve
Height (mm) 99
Length 120 mm
Max Inlet Temperature 85 °C
Temperature Adjustment Range 30-50 °C
Temperature Stability +/-2°C
Range 5213

Approvals

Altecnic 5213 Thermostatic Mixing Valve and MX Valve 15mm - CA-100827 – Approvals Specifications
WRAS Approved Yes
TMV2 Approved Yes
TMV3 Approved Yes
Complies with BSEN1111 & BSEN1287:2017 Yes
BS 7942:2000 Approved Yes

Documents

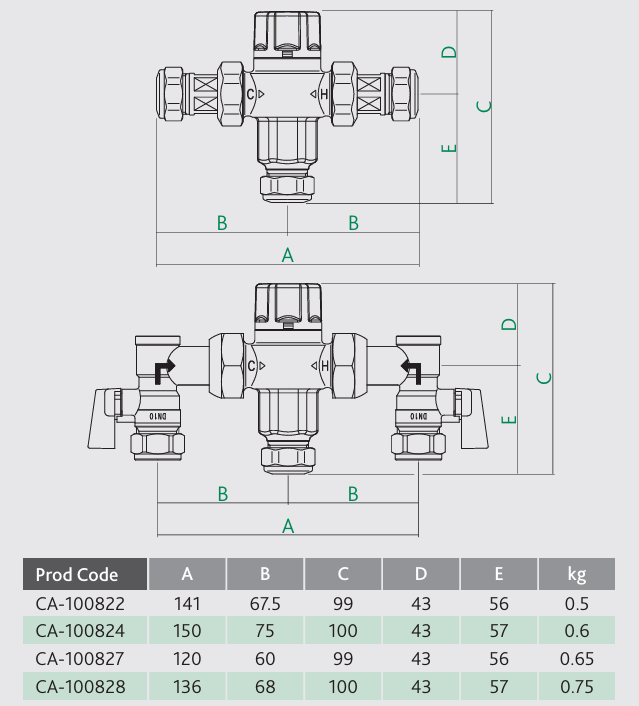

Technical Drawings
