Key Information

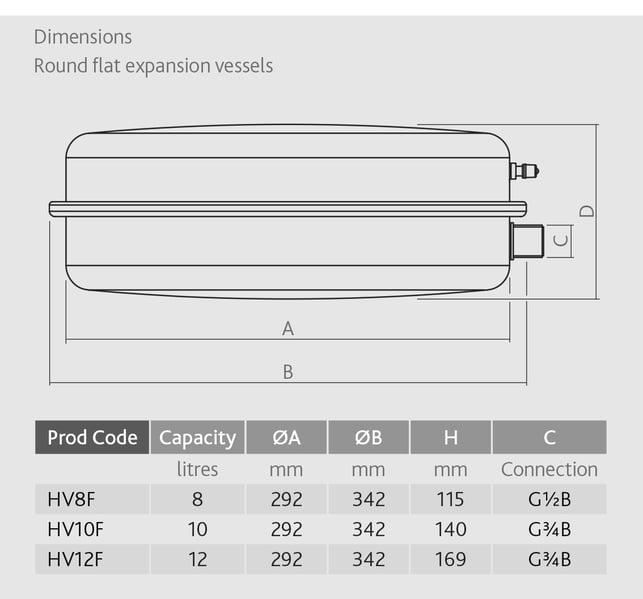

• Dimensions — 368(L) x 344(W) x 183(H)mm
• 10 Litre Capacity — Suitable for heating systems and boilers
• Flat Round Design — Ideal for compact installations
• Non-Replaceable Diaphragm — Reliable internal pressure control
• Crimped Collar Construction — Creates a pressure-tight seal
• No Internal Corners — Helps prevent sediment build-up
• Red Epoxy Coated Finish — Corrosion-resistant exterior
• Max Operating Temperature: 90°C — Designed for heating systems
• Suitable for Glycol Mixtures — Compatible with modern systems
• Ideal for Boilers and HIUs — Compact expansion solution
• Manufactured to PED & BS EN 13831 Standards — Reliable performance
• 1-Year Guarantee — Peace of mind

What's Included

• 1 x Altecnic Reflex 10L Flat Round Heating Expansion Vessel

The Altecnic Reflex 10L Flat Round Heating Expansion Vessel is designed to manage pressure changes in sealed heating systems, particularly within boilers and heat interface units. Its flat, compact design makes it ideal for installations where space is limited, while still providing reliable expansion control.

Flat Profile for Space-Saving Installation

This vessel features a flat round design, allowing it to fit neatly inside boiler casings or tight installation areas. It’s specifically developed to meet the needs of boiler and HIU manufacturers where compact expansion solutions are required.

Durable Diaphragm Construction

The vessel incorporates a non-replaceable diaphragm secured within two sections clamped together using a crimped collar. This construction creates a reliable, pressure-tight structure suitable for internal pressures up to 3 bar.

Designed to Reduce Sediment Build-Up

With smooth internal surfaces and no corners, the tank design helps minimise sediment accumulation. This improves long-term performance and supports cleaner system operation.

Built for Heating System Performance

Finished in a red epoxy coating, the vessel is protected against corrosion and wear. It is suitable for operating temperatures up to 90°C and is resistant to ethylene and propylene glycol mixtures, making it suitable for modern heating systems.
