Key Information
- Direct Mains-Fed System — Eliminates the need for auto-flush cisterns and associated pipework
- Discreet Per-Bowl Infrared Sensor — Automatically flushes after use for improved hygiene
- Integral DC Pipe Interrupter — Provides Fluid Category 5 back-siphonage protection
- Water Regulation Compliant — Designed to meet UK water regulations
- Adjustable Flush Duration — 7-second standard flush time with adjustable settings
- 50cm Sensor Range — Reliable user detection with reduced false activation
- Vandal-Resistant Concealed Valve — Improved durability in commercial settings
- Mains or Battery Powered — Both options included as standard
- Chrome Finish Sensor — Clean, professional appearance
- 1-Year Guarantee — Manufacturer-backed assurance
What's Included
- 1 x Cistermiser Direct Flush Discreet Infrared Flush Valve - Urinal

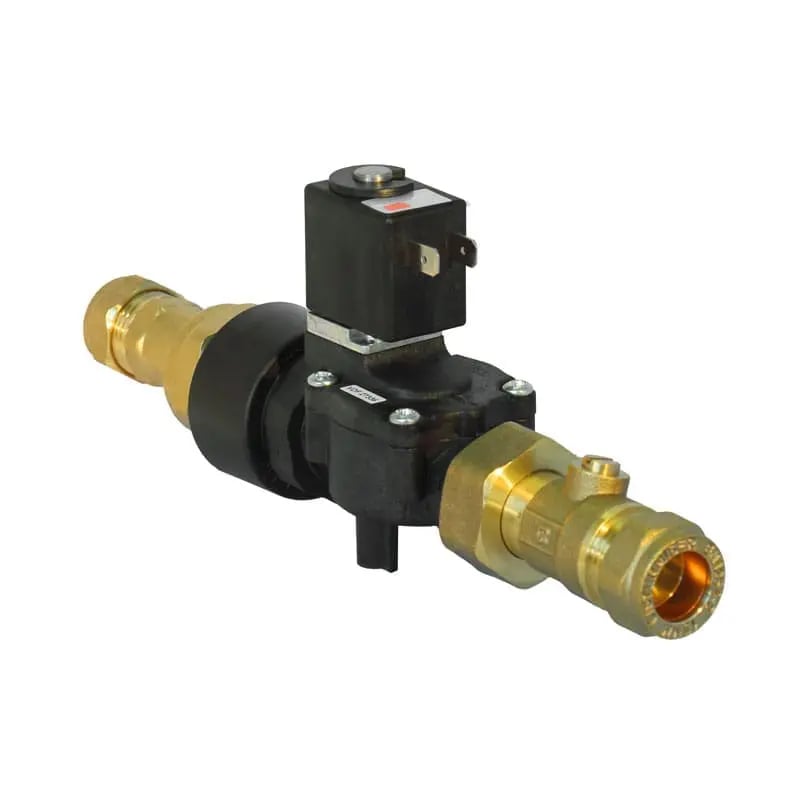

The Cistermiser Direct Flush Discreet Infrared Flush Valve is a direct mains-fed urinal flushing solution designed to deliver maximum hygiene with minimal water usage to commercial bathrooms. Finished in chrome, this system includes a discreet per-bowl infrared sensor and a solenoid valve with an integral DC pipe interrupter, allowing for safe and compliant direct connection to the mains water supply.
Designed to eliminate traditional auto-flush cisterns and associated plumbing, this system provides a cleaner, more efficient and more compact installation for commercial washrooms.
Intelligent Automatic Flushing
Direct Flush automatically activates after use, ensuring every urinal is flushed individually and only when required. This not only maintains high hygiene standards but significantly reduces unnecessary water consumption compared to traditional timed or cistern-based systems.
The flush duration is set at 7 seconds and can be adjusted to suit site requirements. The sensor has a detection range of up to 50cm, ensuring reliable activation while preventing false triggering.
Built-In Category 5 Backflow Protection
The integrated DC pipe interrupter (air gap) allows direct connection to the mains supply while providing Fluid Category 5 back-siphonage protection. This removes the need for additional backflow prevention devices or check valves, simplifying installation and ensuring full compliance with water regulations.
Discreet, Vandal-Resistant Design
The valve body is fully concealed, reducing the risk of tampering and vandalism in commercial environments. The compact chrome sensor head offers a discreet appearance while remaining easily accessible for maintenance and adjustment.
Flexible Power Options
The Direct Flush system can be powered by either mains electricity or battery. Both power options are supplied as standard, offering flexibility during installation and allowing the system to be adapted to site constraints.
Order from PlumbNation Today
Upgrade to a smarter, more hygienic and water-efficient urinal flushing solution with the Cistermiser Direct Flush Discreet Infrared Flush Valve. Designed for compliance, durability and commercial reliability — available now at PlumbNation.
Technical Information
- Flush Time: 7 seconds (adjustable)
- Sensor Range: 50cm

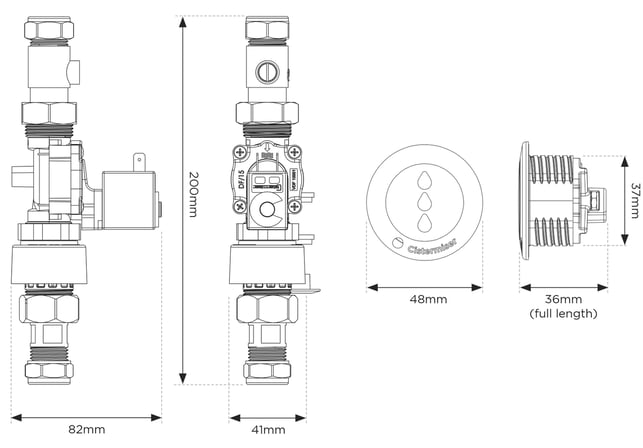

- Valve Dimensions: Height: 200mm, Width: 41mm, Depth: 82mm
- Sensor Dimensions: Height: 48mm, Width: 48mm, Depth: 27mm
- Power Supply: Mains or Battery (included)
