Key Information
- Low Pressure Operation (0.3–0.5 Bar) — Suitable for low pressure supply systems
- Automatic Urinal Flush Control — Only allows cistern filling when washroom is in use
- Hydraulic Mechanical Operation — No mains power or batteries required
- Water Saving Performance — Reduces unnecessary water consumption
- Odour Reduction — Helps maintain washroom freshness
- Fit and Forget Reliability — Simple, durable design with minimal maintenance
- For Use with Urinal Cisterns — Designed specifically for cistern flushing applications
- WRAS Approved — Fully compliant with UK Water Regulations
- 1-Year Guarantee — Manufacturer-backed assurance
What's Included
- 1 x Cistermiser Hydraulic Valve - Low Pressure

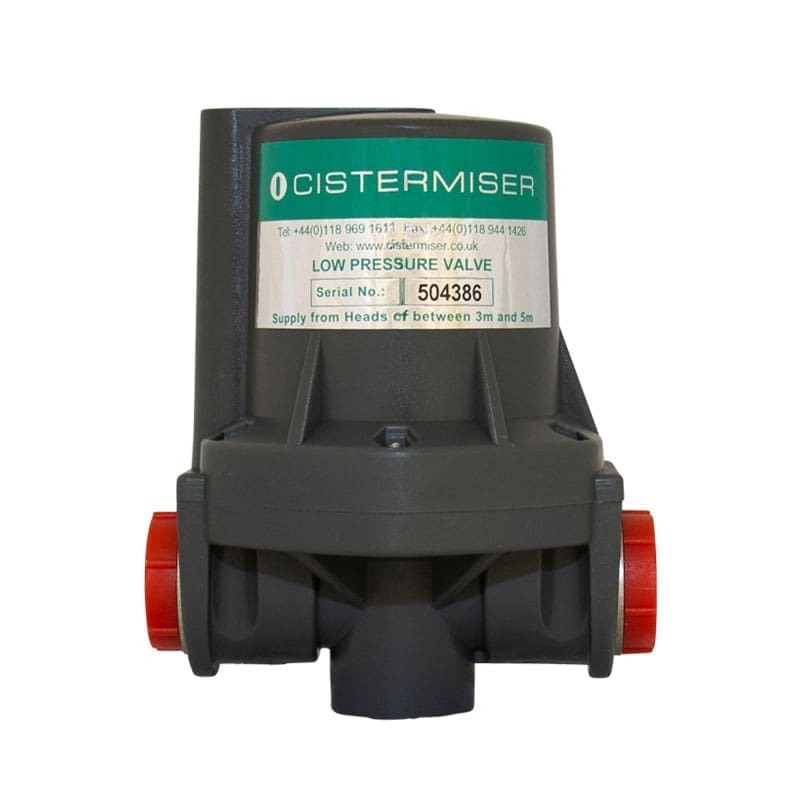

The Cistermiser Hydraulic Valve – Low Pressure is an automatic urinal flush control valve designed for use with urinal flushing cisterns. Operating without the need for mains power or batteries, it provides a simple, mechanical solution for controlling water usage in commercial washrooms.
Specifically designed for low pressure supply systems between 0.3 and 0.5 bar, this model is ideal for cistern-fed installations where water pressure is limited.
Automatic Control Without Electricity
The Hydraulic Control Valve uses a unique hydraulic mechanism to regulate cistern filling. It ensures that the auto-flush cistern is only filled, and can only flush, when the washroom is actually used.
Because it operates entirely mechanically, there is no requirement for electrical supply or battery power. This reduces installation complexity and eliminates ongoing maintenance associated with powered systems.
Water Saving and Odour Reduction
By preventing unnecessary cistern filling during periods of non-use, the valve significantly reduces water waste. This not only lowers operating costs but also helps minimise washroom odours caused by stagnant water and infrequent flushing.
The system ensures that water is only used when required, supporting compliance and sustainability targets.
Simple, Reliable “Fit and Forget” Design
Engineered for durability and long-term performance, the Hydraulic Valve is designed as a “fit and forget” solution. With no electrical components, the system reduces the risk of failure and ongoing servicing.
It is WRAS approved and ensures compliance with UK Water Regulations, making it suitable for commercial and public bathrooms.
Order from PlumbNation Today
Choose the Cistermiser Hydraulic Valve – Low Pressure for a reliable, non-electrical solution to automatic urinal flushing. Designed to reduce water waste and ensure compliance, it’s a durable and cost-effective option for commercial washrooms — available now at PlumbNation.
Technical Information
- Application: Urinal flushing cistern control
- Supply Pressure Range: 0.3–0.5 bar
- Power Requirement: None (hydraulic mechanical operation)
- WRAS Approved
