Cistermiser Infrared Control Valve and Ceiling Mounting Kit - IRC2

£257.08 (Inc. VAT)

In Stock

FREE DELIVERY

Description

Key Information:

  • Dimensions — 85mm (H) x 85mm (W) x 68mm (D)
  • Infrared sensor — Automatic operation when motion detected
  • Versatile mounting — Solenoid or remote mounting
  • Solid brass valve body — Robust for longevity
  • Reduces water waste — Reduces water waste by over 80%
  • ECO mode — Provides even greater water savings
  • Hygiene flush — If inactive for 12 hours, the valve opens for 30 minutes
  • Long-life battery — Lasts approximately 3 years
  • 3-year guarantee

What's Included:

  • Cistermiser Infrared Control Valve and Ceiling Mounting Kit - IRC2
  • Mounting bracket included

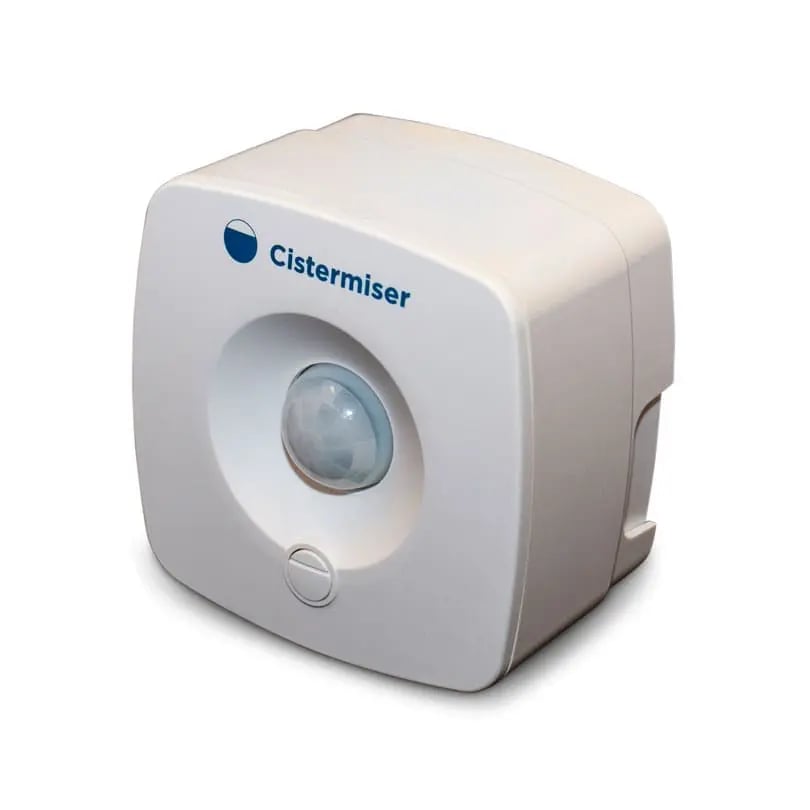

The Cistermiser Infrared Control Valve is designed to help you save water, reducing water waste by over 80%, and improve the hygiene of your urinals, making it the perfect option if you have multiple urinals operating at once.

Infrared sensor operation

The Cistermiser Infrared Control Valve uses an infrared sensor that is triggered by movement. When the sensor detects movement, a pulse from the sensor opens the solenoid valve, causing water to flow into the cistern.

Eco mode

Typically, the valve operates with a 30-minute cycle, flushing a maximum of twice an hour. However, there is an optional eco or 'economy' mode that adds an additional delay of 15 minutes before the normal cycle activates, saving you water. This means it flushes twice every 90 minutes.

Automatic hygiene flush

If the urinal goes unused for 12 or more hours, the valve automatically opens for 30-minutes, which allows one full flush of the cistern to rinse the urinal and pipework.

Versatile mounting options

The Cistermiser Infrared Control Valve has multiple mounting options, including mounting directly to the sensor module on the solenoid or mounting remotely by using the supplied mounting bracket.

Specifications

 Back

Technical

Cistermiser Infrared Control Valve and Ceiling Mounting Kit - IRC2 – Technical Specifications
WRAS Approved 1
EAN 5014308061132
Product Code 176751
Type Commercial Washroom
Sub Type Urinal Fixings
Warranty 3 Years
Width (mm) 85
Height (mm) 85
Depth (mm) 68

Documents

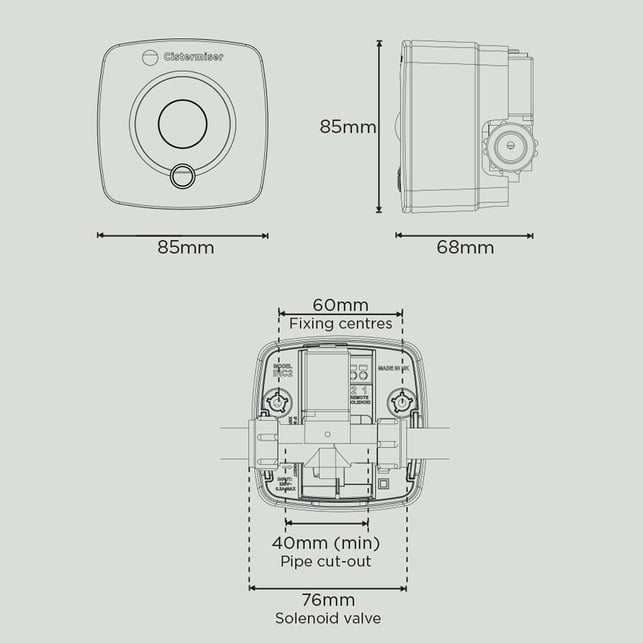

Technical Drawings
