DuraTherm Horizontal Double Flat Panel Designer Radiator 600 x 760mm, White - AVFUS070
8 reviews
£150.00(Inc. VAT)
✓
In Stock
FREE DELIVERY
Description−
This Duratherm horizontal flat double panel designer radiator is perfect for awkward spaces and compact living thanks to its compact size. The sleek, flat tube design boasts a stylish white finish that suits most modern colour schemes. Made from carbon steel, it's also double panelled for optimal heat output. The radiator is compatible with all heating systems and comes with a 10-year guarantee for peace of mind. Fixings and brackets are included for swift installation.
Key Features:
Flat single panel design
Horizontally hung
White finish
Carbon steel
Compatible with all heating systems
10-year guarantee
Additional Information:
600 x 760mm
Fixings and brackets included
Conforms with BS EN 442, the European standard for radiators

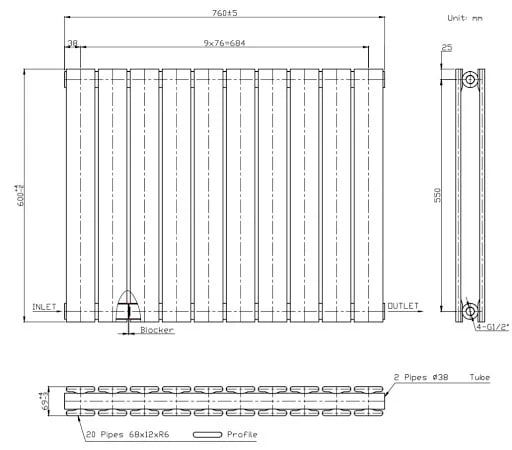

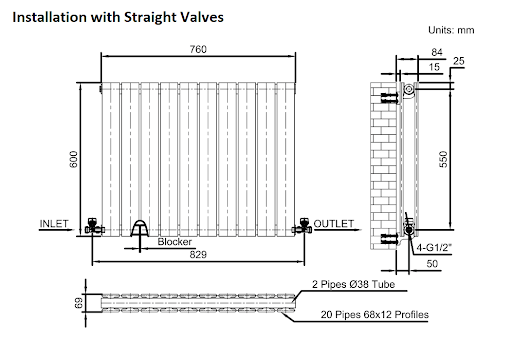

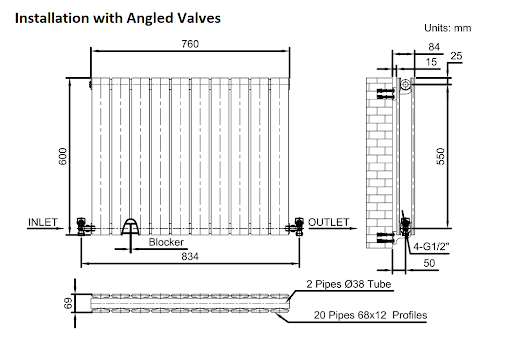

Technical Drawings
+
Specifications+
Back
DuraTherm Horizontal Double Flat Panel Designer Radiator 600 x 760mm, White - AVFUS070 Specifications
Radiator Type
Designer Radiators
Panels
Double
Panel Profile
Flat
Style
Modern
Colour
White
Installation Type
Hot Water
Height
600
mm
Width
760
mm
Depth
66
mm
Weight
21.94
kg
Projection from wall (inc brackets)
83
mm
Material
Mild Steel
BTU Output (Delta 30)
1704
BTU Output (Delta 50)
3278
BTU Output (Delta t60)
3461
Watts Output (Delta 30)
499
Watts Output (Delta 50)
961
Orientation
Horizontal
RAL Colour Code
9016
Guarantee
10
Years
Wall to Centre Tapping
50
mm
Pipe Centres
760+-5
mm
Inlet Connection
G1/2 inches
Max working pressure (bars)
4.0
Max working temp. (degrees)
95
Certification
BS EN 442
Tube Quantity
20
Mounting
Wall
Panel Type
Designer Double Panel
Sub Type
Flat Panel Radiator
DuraTherm Horizontal Double Flat Panel Designer Radiator 600 x 760mm, White - AVFUS070
Product Code: PWFPDD600760W
Product Options:
455
605
760
910
1060
1065
1215
1440
Double: A set of parallel panels designed to provide higher heat outputs for larger rooms.
Single: A single panel with a shorter projection, designed for smaller rooms which need lower heat outputs.
