EHC Slim Jim 10kW Electric Flow Boiler EHCSJIM10KW

£794.96 (Inc. VAT)

In Stock

FREE DELIVERY

Description

 Back

Features and benefits:

  • 10kW electric flow boiler
  • Compact design and ideal for small spaces
  • Available with outputs of 4kW, 7kW, 10kW, 12kW and 14.4kW
  • Can select Heating only, Hot Water only or both at the same time
  • Easy to use control panel

The compact design of this 10kW SlimJim Electric Flow Boiler means that it is ideal for installations where space is limited. It is a fully controllable electric boiler that has been cleverly designed in order to help maximise your cupboard space.

These Electric Flow Boilers are available with outputs of 4kW, 7kW, 10kW and 12kW, with a 14.4kW option available for any properties that require a larger output.

You are able to use the boiler in an ‘S’ Plan configuration which means that you are able to choose from Heating only, Hot Water only or both at the same time if you need. The boiler has been designed to be silent in operation, easy to install and extremely efficient.

The boiler has an easy-to-use control panel on the front that features a temperature control dial along with heat and diagnostic indicators in case of any faults. It also features an easy-fit front cover in order to make access for any future maintenance easy.

A Run-Dry Water Level Sensor that has been incorporated within boiler helps to protects the heat exchanger from running dry due to system water loss. The heat exchanger is made from stainless steel and has been fully insulated to help minimise any potential energy heatloss. The boiler features a current safety cut-out device which helps to protect the boiler against overheating.

The temperature range of the boiler can be set between 30 degrees and 80 degrees which also makes it a suitable choice for wet central heating radiators and underfloor heating systems.

You are able to purchase the SlimJim as either standalone unit or with a choice of boiler packs for heating only or heating and hot water depending on what sort of installation you require.

Technical info:

  • Temperature range can be set between 30 and 80 degrees
  • Run-Dry Water Level Sensor
  • Fully insulated heat exchanger to minimise potential energy heatloss

Technical Drawings

 Back
ehc-10kw-slim-jim-120l-direct-cylinder-package

Specifications

 Back
EHC Slim Jim 10kW Electric Flow Boiler EHCSJIM10KW Specifications
Capacity (Litres) 120
Fitting Location Internal
Weight (Kg) 11
EAN 5906564029189
Boiler/Product Type Boiler Pack
Sub Type Flow Boiler
Colour White
Guarantee (Years) 5

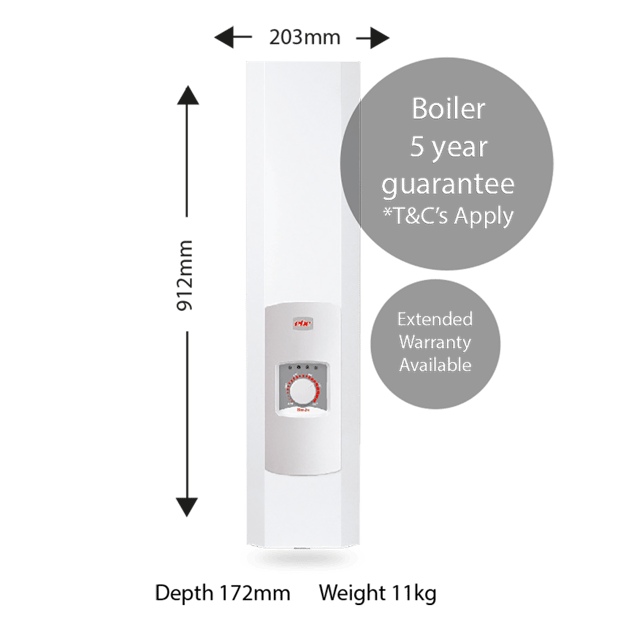

Width (mm) 203
Height/Length (mm) 912
Depth (mm) 172
Heat Output (kW) 10
Fuel Type Electric
Mounting Wall
