Features:

• Compact metering device
• Measures Import and Export Active Energy
• Easy-to-read LCD Display
• Extended terminal cover included
• Fully MID approved

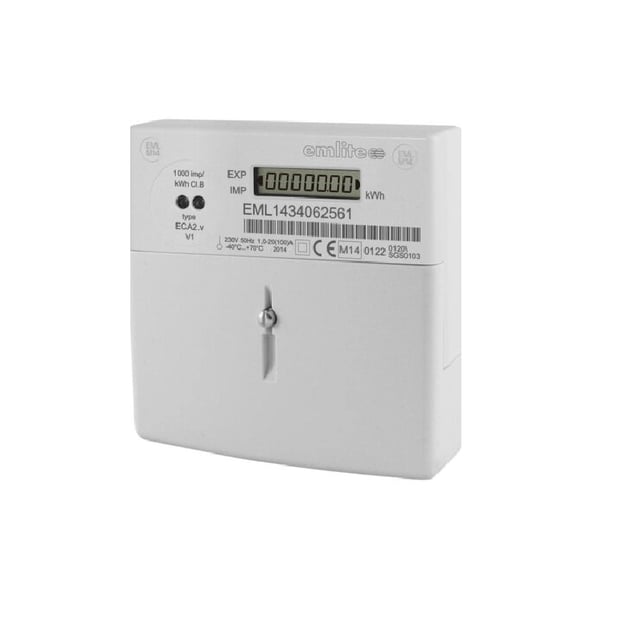

The Em-Lite 1-PH Bi-Directional Generation Meter is one of the world's most compact metering devices allowing the unit to be used in metering installations where space is at a premium. The meter provides measurement of active (kWh) energy in both import and export directions, with registers shown on the large easy to read LCD display.

User-friendly LCD display

The LCD display features 8 x 3.5mm characters and can be easily configured to auto cycle for any of the available registers or remain static with only a single register viewable.

Incredibly reliable

The electronic meter is highly reliable and capable of withstanding high voltage events and overcurrent without failure. The meter is resistant to tamper with reverse energy fraud detection and sealing for life.

Installation

• Meters are intended for installation in a class E2 electromagnetic environment and Class M1 Mechanical Environment according to 2004/22/EC Directive

Guarantee:

• 12 month guarantee for peace of mind

Technical information:

• Nominal voltage: 220V-240V
• Maximum voltage: 276V
• Voltage withstand: 415V (max. 6 hours)
• Nominal frequency: 50Hz
• Frequency variation: ± 5%
• Basic current (Iref): 5, 10, 15 and 20A
• Maximum current (Imax): 100A (140% overcurrent)
• EN 50470 1-3 Class B (1%)
• Phases: 1
• Weight: 1.22kg
