Features:

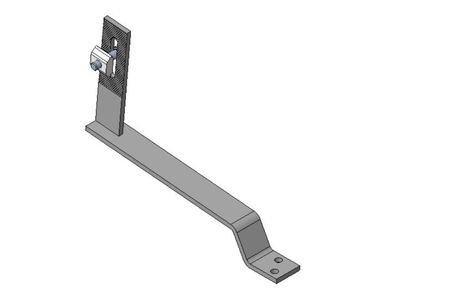

• Designed to secure the mounting rails to the roof beams
• Stainless steel brackets
• Compatible with flat tiles, plain, rosemary, biscuit and peg tiles
• Easy & quick installation

Fastensol produces every product using high-quality materials, advanced equipment, and combined with strict inspection, the mounting brackets in Fastensol offer over 25 years durability and practicability with 12 years guaranteed.

Installation

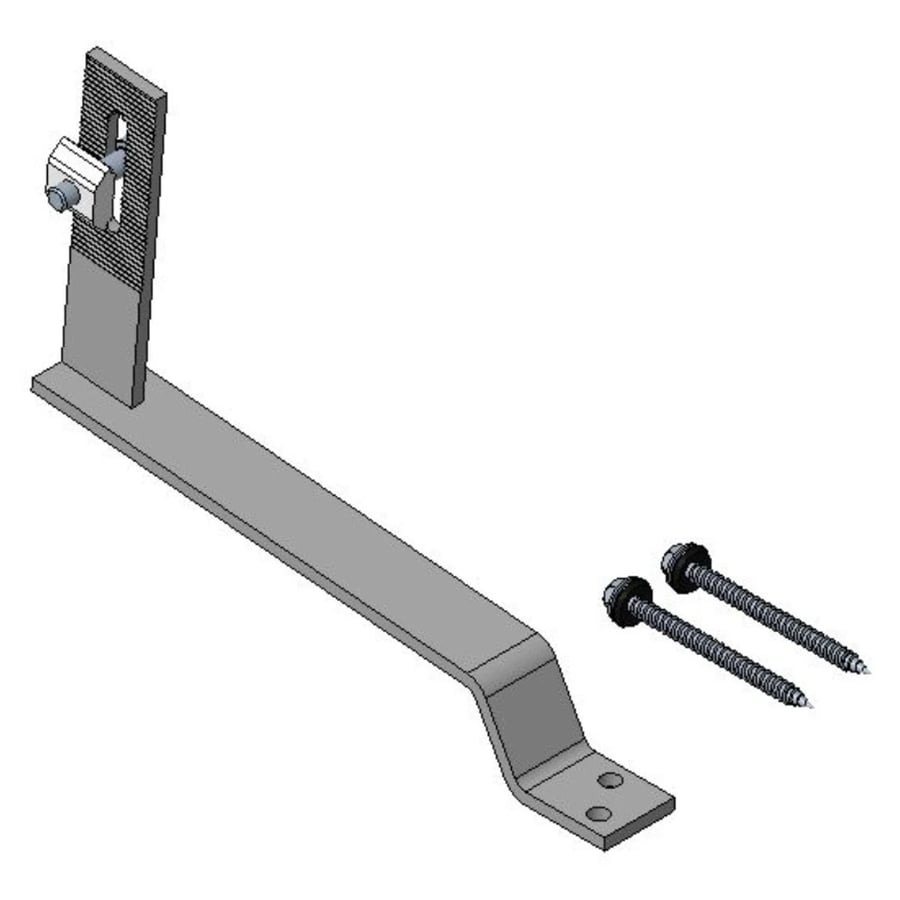

Remove a few tiles from the outside of the roof and the hook can be secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are then replaced around the hook. A weatherproof finish can best be achieved using flashing or the Genius Solarflash. Some installers also use Hookstops.

Guarantee

• 12 years for durability on material, 5 years on finish for peace of mind

Technical information:

• Suitable for pitched and flat roofs
• Cladding type: flat / plain / rosemary / biscuit / peg tiles
• Maximum slope: 60 degrees
• Wind load: up to 60m/s
• Snow load: 2.0kn/m2
• Maximum building height: 20m
• Material: stainless steel
• Color: silver
• MCS 012 certification
