Features

• Suitable for use as either open-vented or unvented cylinders
• Pre-plumbed
• Single coil
• Nominal capacity: 300L
• Actual capacity: 289L
• Weight: 73 kg
• Weight when full: 362 kg
• Dimensions: 2057(H) x 550(Diameter) mm
• Maximum water supply pressure: 12 bar
• Primary coil rating: 32 kW
• Standing heat loss: 2.02 kWh/24hrs
• ErP rating: C
• Material: High-grade duplex stainless steel shell, stainless steel internal coils, and organic Estectic Tex paint finish

Guarantee

• 25 years

What's Included

• The Grant EP001 wiring centre
• Digital dual thermostat and immersion heat timer
• Factory-fitted cold water inlet pipework
• Potable water expansion vessel for the cylinder
• Factory-fitted primary system pipework including a built-in filling loop
• System pressure gauge
• Automatic system bypass
• 2-port zone valve for the hot water
• 2x 2-port zone valves for two heating zones

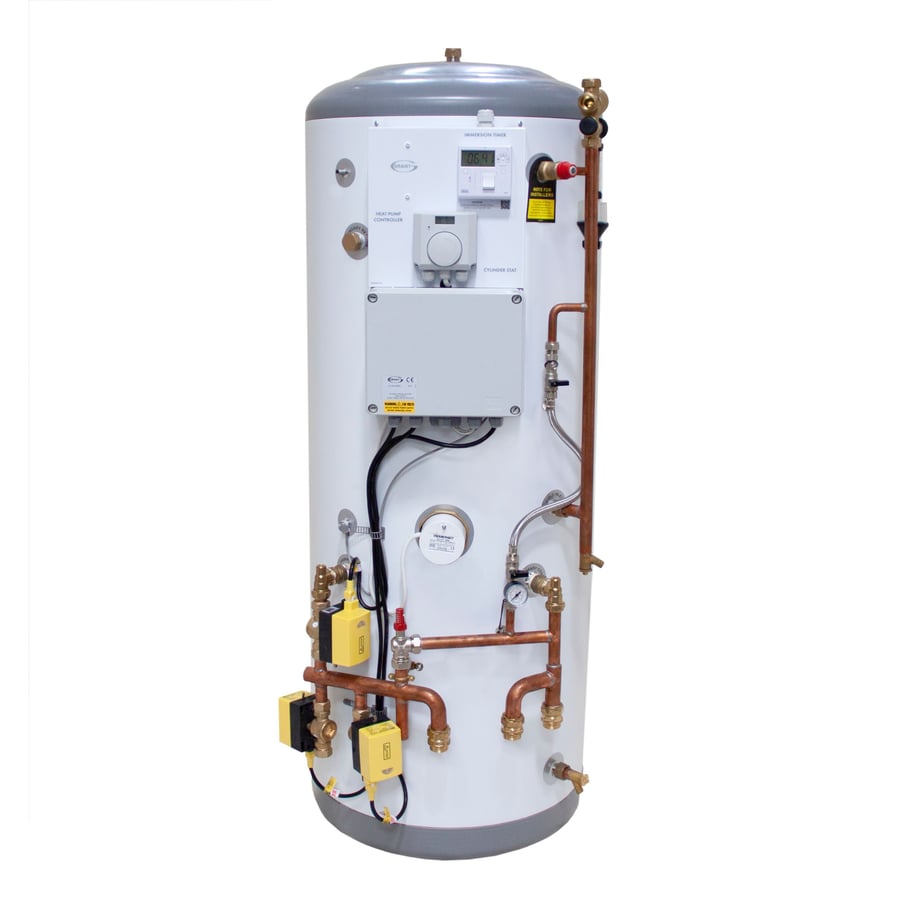

The Grant Quick Recovery 250L Pre-Plumbed Single Coil Cylinder is suitable with both traditional and renewable heating systems. This hot water cylinder is also suitable for use as an open-vented cylinder or an unvented cylinder, providing fast heat-up times and reduced standing heat loss.

Additional Information

• Secondary return connection: 22 mm
• Cold feed/hot draw-off connections: 22 mm
• Primary coil connections: 22 mm
• Primary coil length: 26m
• Primary coil pipe diameter: 28 mm
• Primary coil surface area: 2.3 m²
• Global Warming Potential (GWP): 3.1
• Ozone Depletion Potential (ODP): 0
