Key Information:

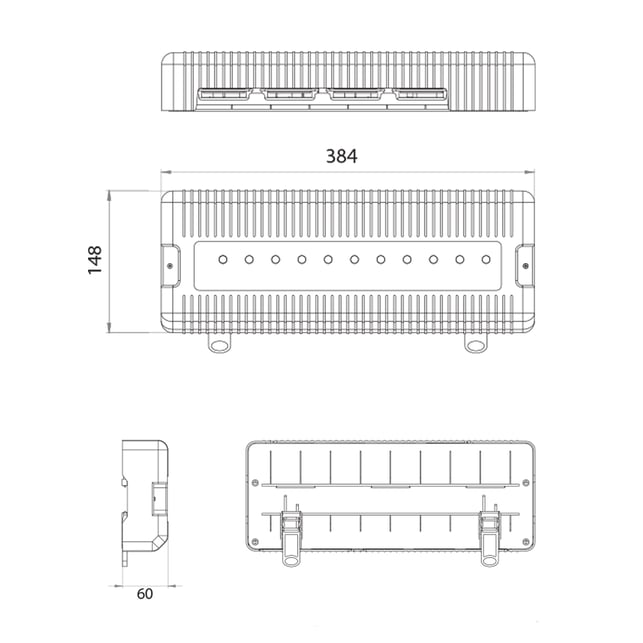

• Dimensions — 148mm (H) x 384mm (L) x 60mm (D)
• Controllable zones — 8
• Two heating time channels — Individually controlled for maximum comfort
• Optional additional time channels — For hot water control or other auxiliary devices
• Actuator output voltage — 230v
• Guarantee — 2 years

What's Included:

• Heatmiser UH8 - 8 Zone 230v Underfloor Heating Wiring Centre

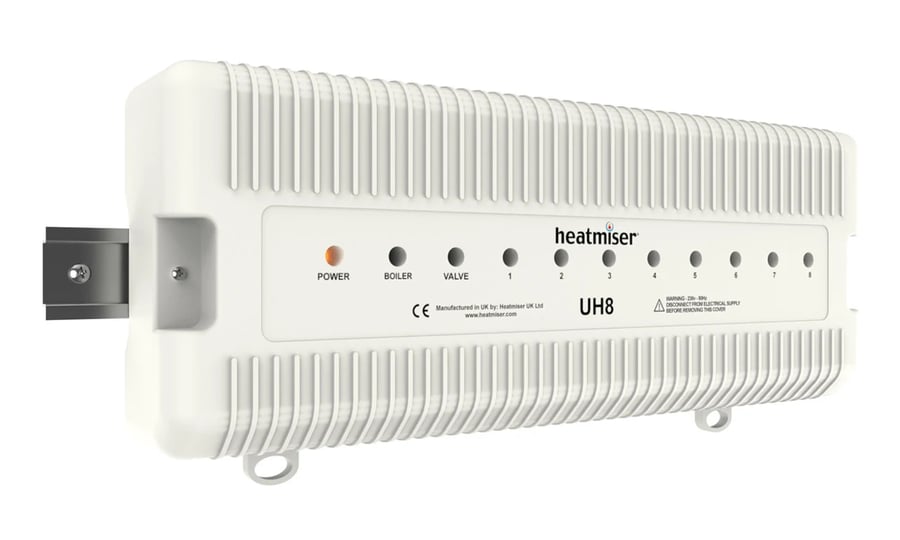

Upgrade your underfloor heating with the Heatmiser UH8 Wiring Centre. Compatible with Heatmiser 230V thermostats, the wiring centre has 8 unique zones that support four actuators, providing you with total control over your heating system.

8 zone control

The Heatmiser UH8 can control eight zones, with zone 8 being suitable for controlling a radiator zone. Zone 8 can be converted into a radiator zone quickly and easily via a simple slide switch.

Two heating time channels

The Heatmiser UH8 - 8 Zone 230v Underfloor Heating Wiring Centre includes two heating time channels, which allows you to specify which time channel the wiring centre should follow. It also boasts two optional additional time channel connections, which can connect to other auxiliary devices or provide greater hot water control.

Volt-free connection

A volt-free connection is supplied for boilers, meaning the wiring centre is compatible with a wide range of boilers. A volt-free connection or dry connection is a switch that controls the electrical circuit without supplying power directly, this ensures that you have a safe heating system.
