Key Information:
- Dimensions — 384mm (H) x148mm (W) x 60mm (D)
- Number of heating zones — 8
- Compatibility — 12V thermostats
- DIN rail mounting — Industry standard for mounting electrical components in control panels
- Output indication — LED indication of the zone, boiler, pump and valve status
- Easy installation — Wiring centre is above the UFH manifold for easy connection to the actuators, pump, and valve
- 1-year guarantee
What's Included:
- Heatmiser UH8-N - 8 Zone 12v Wiring Centre

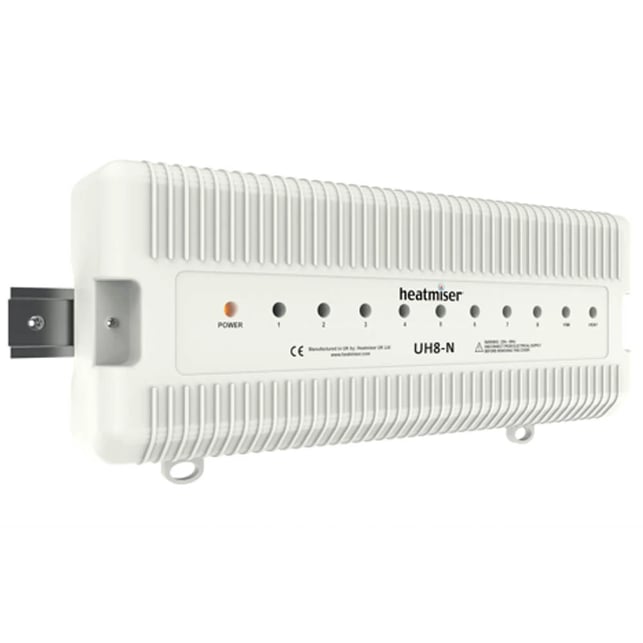

The Heatmiser UH8-N is a central wiring switch box designed to be used with Heatmiser 12v thermostats and is an output for underfloor heating valves and pumps activated when any thermostat requires heat.
Eight zones
The Heatmiser UH8-N - 8 Zone 12v Wiring Centre has eight zones that can be controlled and provide output for a hot water cylinder. Up to six actuators can be connected to each zone.
Radiator option
The Heatmiser UH8-N - 8 Zone 12v Wiring Centre provides an optional radiator zone. When enabled, the last zone is setup for a radiator zone and therefore doesn’t enable the UFH pump, valve or boiler.
Output indication
The Heatmiser UH8-N - 8 Zone 12v Wiring Centre features LED indication of the zone, boiler, pump, and valve status, which provides a clear and easy way of installing and maintaining the system.
Easy installation
Easy to install, the Heatmiser UH8-N - 8 Zone 12v Wiring Centre is situated above the UFH manifold allowing easy connections to the actuators, UFH pump, and valve.
