Key Features
- Slimline shower tray supplied with waste
- Up to 60% lighter than standard stone resin alternatives
- Easy to trim for a tailored fit
- Compatible with all major shower enclosures
- Optional easy-plumb riser kit available separately
- WRAS-approved
- Please note: the riser kit is sold separately and is not included with the tray
Guarantee
Bring practicality and modern design together with the Hydrolux low-profile square shower tray. Expertly engineered for lightweight handling and long-lasting durability, it offers a reliable and comfortable showering solution that’s easy to install and built to perform.
Lightweight Construction
Unlike traditional stone resin trays, Hydrolux trays are remarkably lightweight, making transportation and installation much easier. Even larger trays can typically be handled safely by a single installer.
Reinforced Strength
Manufactured using advanced materials and mineral torsion beam technology, these trays provide outstanding rigidity and durability. The reinforced design ensures impressive strength while maintaining a lighter overall weight.
Easy to Customise
Designed with flexibility in mind, the tray can be cut to suit non-standard spaces or awkward bathroom layouts where conventional trays may not fit. Please note that any cut edges on acrylic-capped trays should be sealed appropriately to minimise the risk of water ingress.

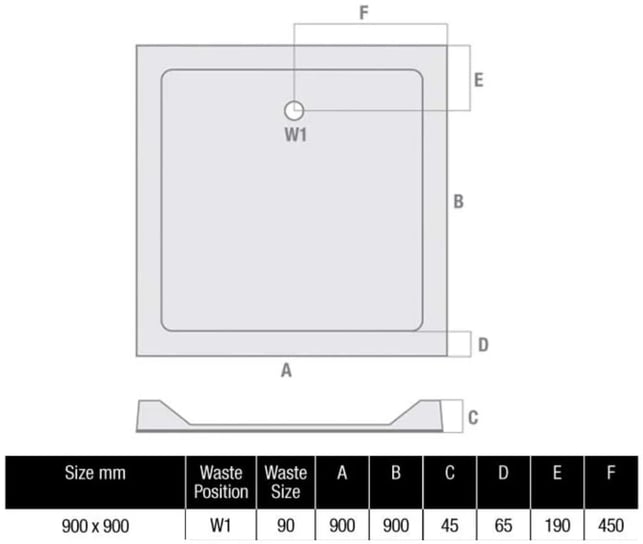

Low 45mm Profile
With a sleek 45mm height, these trays create a modern low-profile finish while also allowing easier access in and out of the shower area.
Universal Enclosure Compatibility
Carefully designed for versatility, these low-profile shower trays are compatible with all leading brands of shower enclosures and glass screens.
Optional Easy-Plumb Riser Kit
For installations on solid floors such as concrete, an optional easy-plumb riser kit can be used to raise the tray by up to 95mm. This provides additional room beneath the tray for pipework and high-flow waste installation. The kit includes support legs and matching side panels to maintain a clean, professional appearance.
WRAS Approved and Built to British Standards
Manufactured in England from WRAS-approved, phthalate-free materials, these shower trays meet both British and European standards, including BS EN 14527 compliance.
Supplied with High-Flow Waste
The included high-flow waste is designed to efficiently remove water from the tray at a rate of up to 32 litres per minute.
Waste Features
- Standard 40mm outlet connection
- 32 litres per minute flow rate
- Vented dome design for improved water drainage
- Quick-release internal component for easier cleaning
- Offset elbow included for straightforward installation
- 90mm waste size
- Manufactured to BSEN1329/1:2000 and BSEN1451/1:2000 standards
