Key Features
- Max. power output: 505WP
- Module efficiency: 22.4%
- Operating temperature: -40°C to +85°C
- Protection class: Class II
- Fire rating: IEC Class C
- Cell orientation: 120 (6x20)
- Frame material: Anodised aluminum alloy
- Hailstone test: 25mm Hailstone at the speed of 23m/s
- Dimensions: 1990L x 1134(W) x 30(D) mm
Guarantee
What's Included

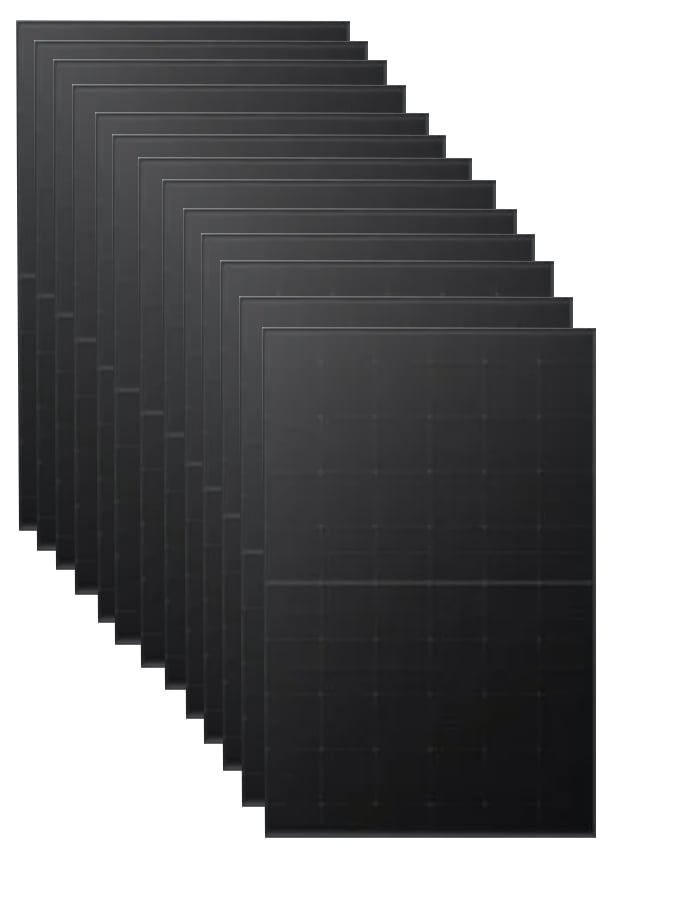

LONGi Solar PV Panel Hi-MO X6 Max 505WP - LR7-60HTB-505 - 13 Panels Overview
The LONGi Solar PV Panel Hi-MO X6 Max 505WP - LR7-60HTB-505 - 13 Panels delivers up to 505WP, allowing you to create renewable energy to use in a residential or commercial setting.
22.4% Module Efficiency and Vigorous Weather Tests
With a 22.4% efficiency rating, this solar panel generates energy even in low-light conditions, and it's undergone vigorous weather tests to provide reliability and optimal performance all year round.
In fact, it has a Class II protection class and an IEC Class C fire rating for safety. With an anodised aluminum alloy frame, it's built to last and can operate in temperatures as low as -40°c and as high as 85°C.
Certifications
- IEC 61215
- IEC 6173
- ISO9001:2015: ISO Quality Management System
- ISO14001: 2015: ISO Environment Management System
- ISO45001: 2018: Occupational Health and Safety
- IEC62941: Guideline for module design qualification and type approval
