Key Information

• Made from Lucite sheet acrylic
• Fully encapsulated 18mm baseboard
• Toilet fixings included
• Stylish gloss white finish
• Full pedestal basin with a single tap hole

What's Included

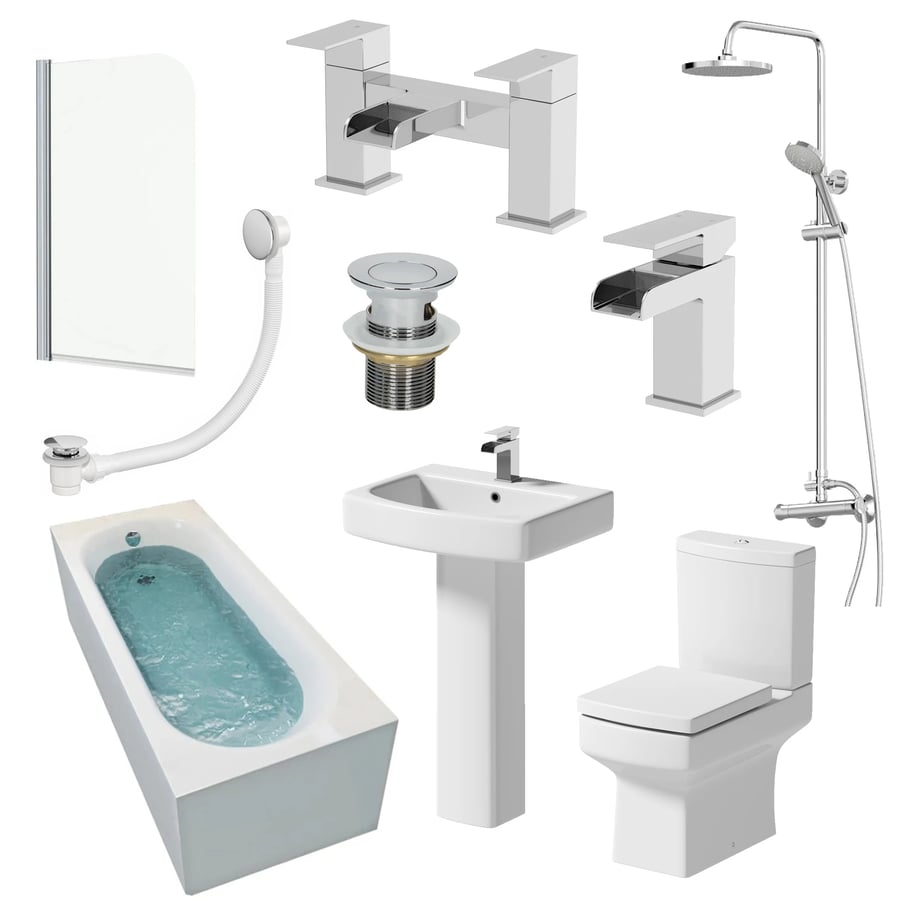

• Affine Royan Space Saving Square Toilet & Soft Close Seat
• Affine Royan Full Pedestal Basin - 560mm
• Ceramica Single Ended Bath & Side Panel - 1700mm
• Frameless Shower Screen - 4mm
• Architeckt Thermostatic Dual Round Bar Mixer Shower
• Architeckt Dakota Waterfall Basin Mixer Tap
• Architeckt Dakota Waterfall Bath Mixer Tap
• Bath and Basin Waste

The Affine Royan Bathroom Suite with Single Ended Bath, Full Pedestal Basin, and Close Coupled Toilet combines contemporary design with high-quality materials to create a fully coordinated bathroom setup. Alongside the main fixtures, the suite includes a thermostatic mixer shower, shower screen, waterfall-style bath and basin mixer taps, and matching wastes, giving you everything you need to achieve a stylish, functional, and long-lasting bathroom.

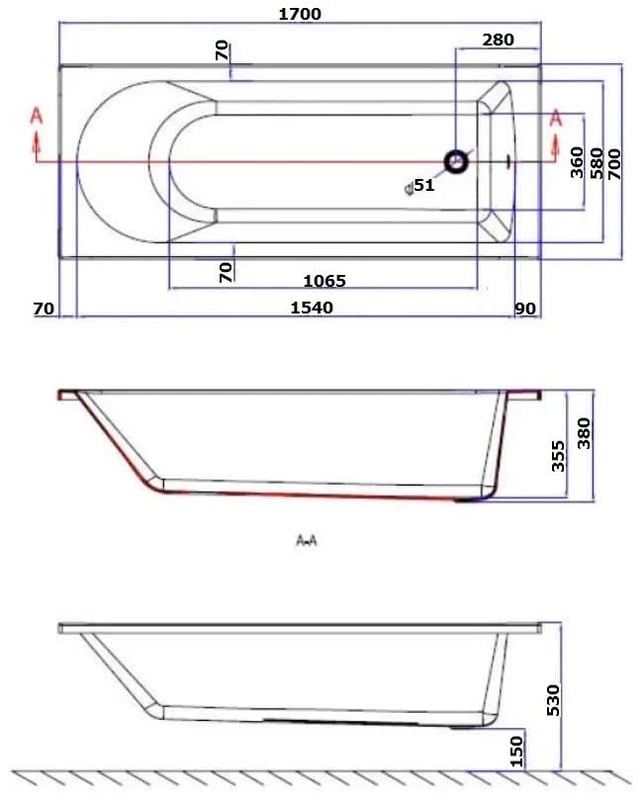

Contemporary 1700mm Single Ended Bath

Perfect for relaxing soaks, the single ended bath features a modern design with a clean white finish, crafted from durable Lucite sheet acrylic that is both scratch and UV-resistant. Pre-drilled for a central waste and overflow, it’s ready for installation straight away. For added strength, the bath is reinforced with a high-quality layer of Glass Reinforced Plastic (GRP), ensuring excellent rigidity and long-term durability.

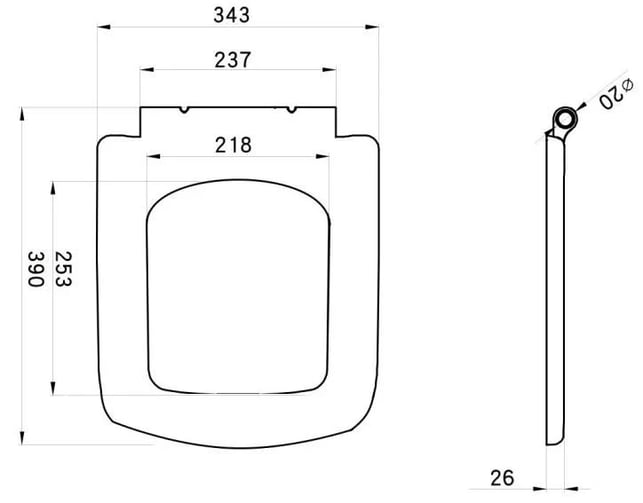

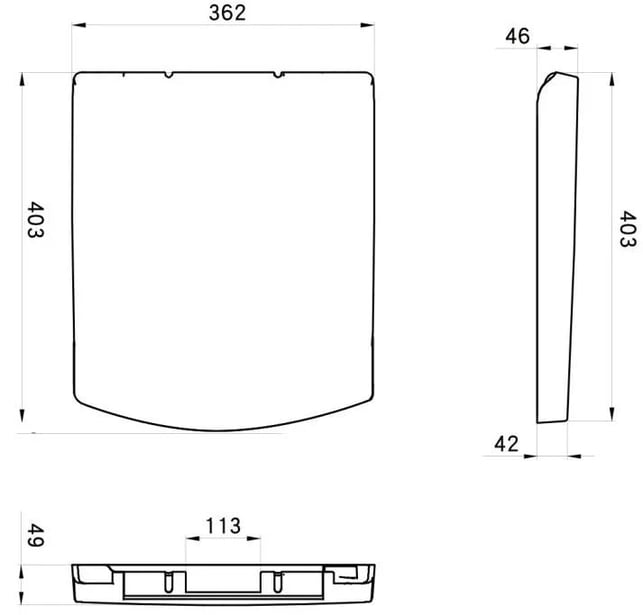

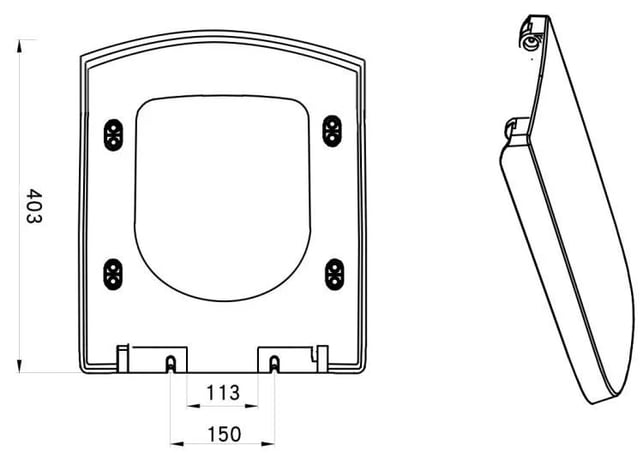

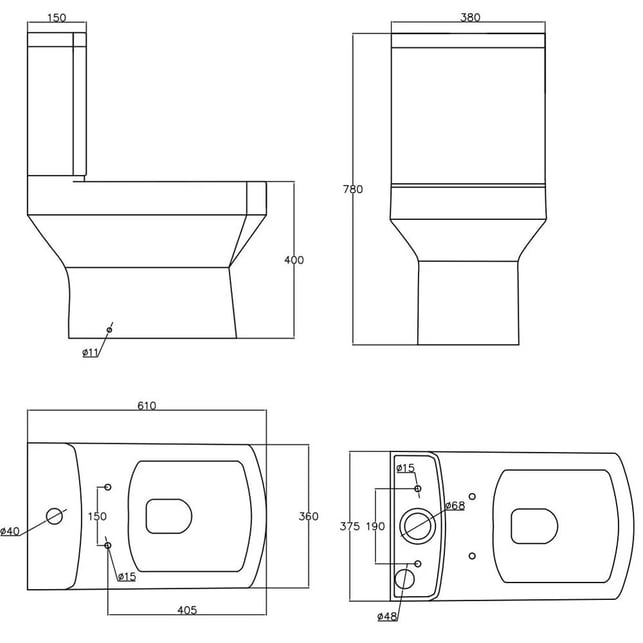

Affine Royan Space Saving Toilet with Soft Close Seat

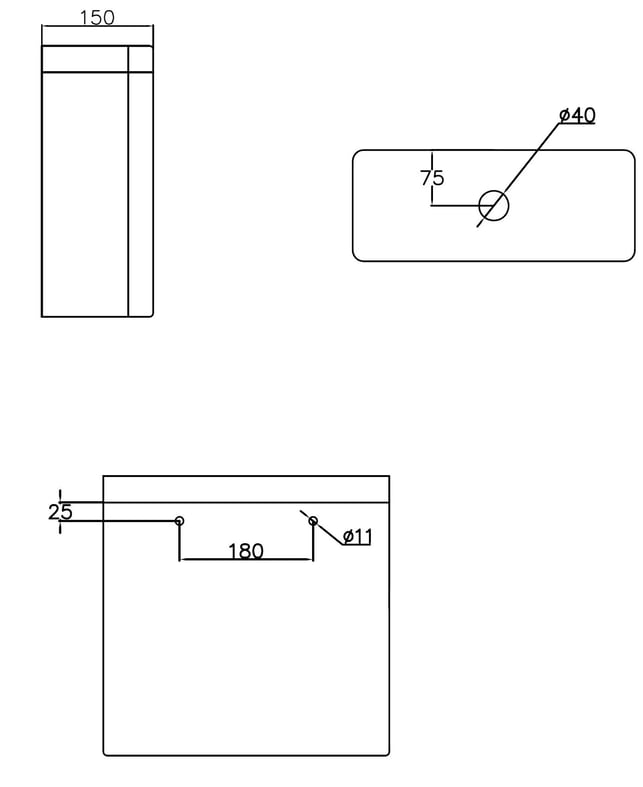

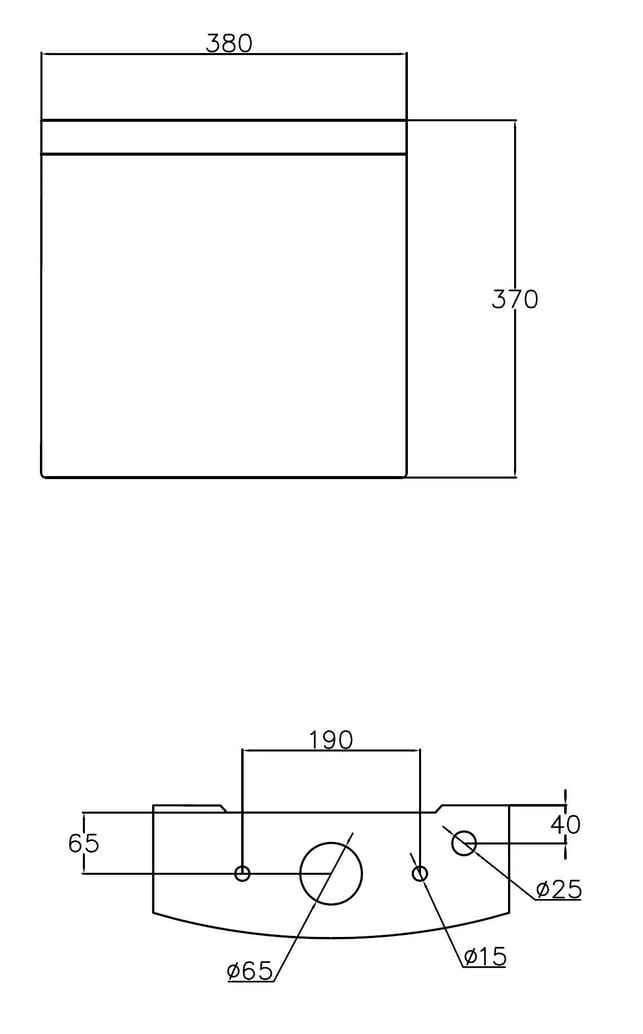

The close coupled, space-saving toilet features a sleek square profile that suits modern interiors while optimising floor space. The soft close seat closes quietly to prevent slamming and reduce wear on the hinges, keeping your bathroom calm and comfortable. The dual flush cistern offers a choice of a 4-litre or 6-litre flush, helping to save water and reduce household bills without compromising performance.

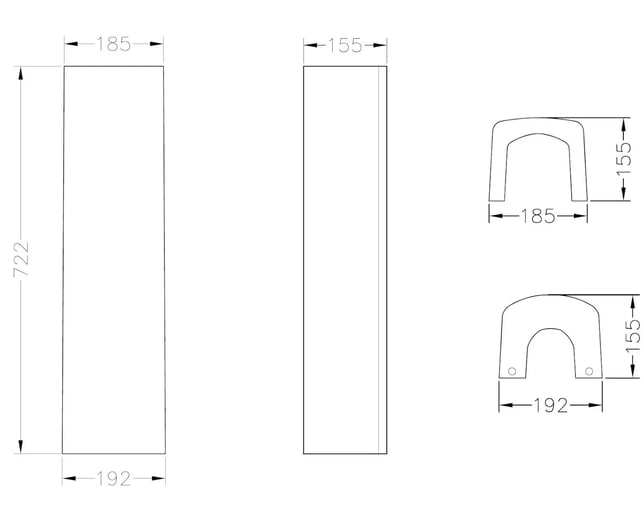

Full Pedestal Basin with Single Tap Hole

The matching Affine Royan full pedestal basin combines practicality with style, concealing pipework for a neat finish while providing extra support beneath the basin for a secure installation. Its single tap hole is ready for the included basin mixer tap, allowing precise control over water flow and temperature from a single lever.

Architeckt Thermostatic Mixer Shower

Designed for both style and performance, the thermostatic mixer shower features a large 225mm round drencher head for an indulgent rainfall effect, plus a matching handset for flexibility and ease of use. Thermostatic control keeps the water temperature steady, compensating instantly for changes in household water pressure - a must-have for family bathrooms.

Matching Waterfall Taps and Wastes

The suite includes an elegant set of Architeckt Dakota brushed brass waterfall-style bath and basin mixer taps, delivering a striking visual impact with their open spouts and smooth water flow. Matching wastes are included for both bath and basin, making installation straightforward and ensuring a consistent look throughout the room.

A Fully Coordinated Bathroom Upgrade

With its combination of stylish design, practical features, and quality construction, the Affine Royan Bathroom Suite delivers everything you need for a premium bathroom transformation. From the elegant bath to the precise shower and luxurious waterfall taps, each element has been chosen to work together seamlessly, ensuring your space looks and feels complete from day one.

Technical Information:

Shower technical information:

• Pipe Centres: 150mm +/- 18mm
• Inlet Connection Size: G1/2" & G3/4"
• Minimum Bar Pressure: 0.5 Bar
• Maximum Bar Pressure: 5.0 Bar
• Tube Diameter: 24mm / 21.5mm
• Shower Hose Length: 1500mm
• Shower Arm Projection: 531mm
• Shower Top To Bottom Adjustability: 870mm – 1240mm

Overhead shower flow rates (l/min):

• 0.5 Bar: 3.6 Litres
• 1.0 Bar: 5.5 Litres
• 3.0 Bar: 9.9 Litres
• 5.0 Bar: 12.9 Litres

Shower handset flow rates (l/min):

• 0.5 Bar: 3.4 Litres
• 1.0 Bar: 5.0 Litres
• 3.0 Bar: 8.9 Litres
• 5.0 Bar: 11.7 Litres

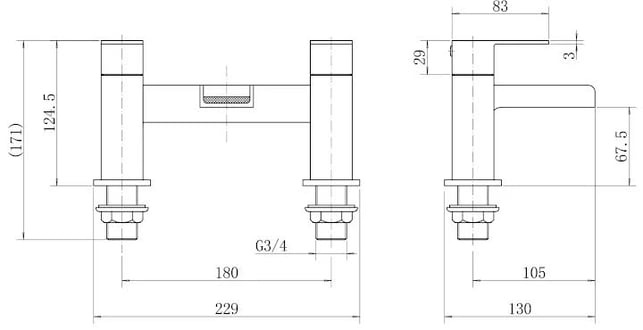

Bath tap technical information:

• Durable solid brass build
• Ceramic cartridge
• Inlet connection size: G3/4

Bath tap flow rates (l/min):

• 0.5 bar: 31.5
• 1 bar: 43.2
• 3 bar: 70.3

Basin tap technical information:

• Flexible tails included
• Durable solid brass build
• Ceramic cartridge
• Inlet connection size: F1/2*M10*1*400mm

Basin tap flow rates (l/min):

• 0.5 bar: 8.7
• 1 bar: 12.3
• 3 bar: 21.1
