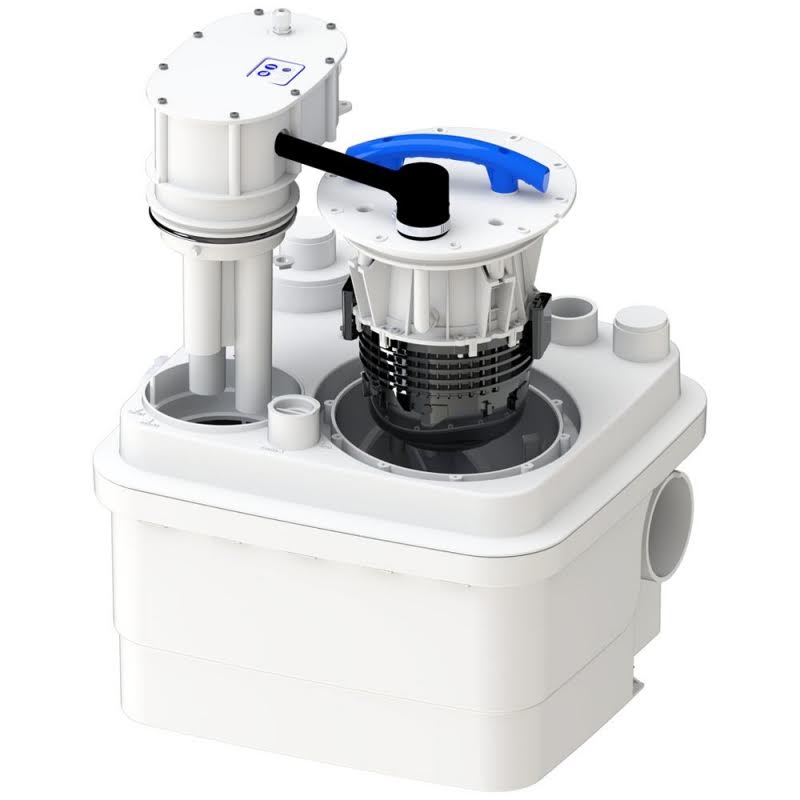

Saniflo Sanicubic 1 Single Heavy Duty Macerator Pump

The Saniflo Sanicubic 1 is a heavy duty macerator durable enough to take waste from up to two WCs plus multiple grey water delivering appliances such as sinks, bathtub, shower, washing machine, dishwasher and sink in water demanding environments. The Saniflo Sanicubic 1's revamped innovative build means the motors are simply withdrawable for maintenance and servicing as is the water level indicator. It features an external hard-wired audio visual alarm. The Saniflo Sanicubic 1 includes integrated non-return valves and the centre heights of inlets is 140mm. The macerator includes four inlets and it discharges through 50 mm pipework.

It has a operating temperature of 35C, although it will handle temperatures up to 75C for short periods. The Saniflo Sanicubic 1 has a tank capacity of 32 litres and a flow rate 13mh. It cant be connected to a Building Management System. The Saniflo Sanicubic 1 provides a 2 year warranty.

Manufactured, build and tested in Saniflos factory in France. Saniflo have been in the pump market for 60 years so this means all products are designed and built with a wealth of experience and innovation to back them. The brand has a renowned service team so you can be assured you have advice and guidance about how to best utilise the products - all this means there has never been a greater time to purchase.

Features and Benefits:

• Replaces the sanicubic 1 1101
• Rating of IP67 which gives protection against temporary immersion in water
• Ideal for busy business environments
• New design with easily removable motor for servicing and maintenance
• Centre heights of inlets 140mm
• Working temperature of 35c, will handle up tpp 75c for short periods
• Single pump heavy duty macerator
• Automatic Activation
• New Sanicubic will discharge waste and water from multiple WC's and other waste water producing appliances
• High performance macerator for use with multiple WCs and other appliances
• Includes 2 Alarms, one on the unit and 1 remote
• Will handle waste water up to 70 degrees C for short periods of time
• Horizontal discharge: 110 metres
• Vertical discharge: 11 meters
• External hardwired audio visual alarm
• Service/maintenance is only possible if all inlets can be isolated (see related items below)
• 2 year manufacturer warranty
• Working waste water temperature 35 degrees C

Technical Information

• Pump (Vertically): 11 metres
• Pump (Horizontally): 110 metres
• Motor power: 1500 Watts
• Discharge pipework: 50mm
• Height: 300mm, Width: 570mm
• Max. Amperage (A) - 40/50/100/110
• Maximum Temperature (degrees C) - 70
• Min. Gravity Fall on Horizontal Run - 3
• Motor Speed (RPM) - 2800

Connections - Toilet, Basin, Bathtub, Dishwasher, Kitchen Sink, Shower, Washing Machine (Indirect connection) & Bidet. Discharges - 11m Vertical / 110m Horizontal.

Determining the correct kind of Pump is a key decision. When you determine that Macerators deliver the best solution, then the Saniflo Sanicubic 1 Single Heavy Duty Macerator Pump - 6101 is definitely worth adding to the shortlist.
