Features & Benefits:
- 3 inlets — connect WC, basin, shower, or bidet
- Built-in macerator pump & frame system — install with ease & supports most wall hung WCs
- Pumps 5m vertically, 100m horizontally — flexible pipe runs
- Integrated dual flush cistern — water-saving performance built in
- Adjustable feet — variable pan height for easier installation
- Tileable wall panel with flush plate — sleek concealed installation
- Ultra quiet 400W motor — reduced noise disruption

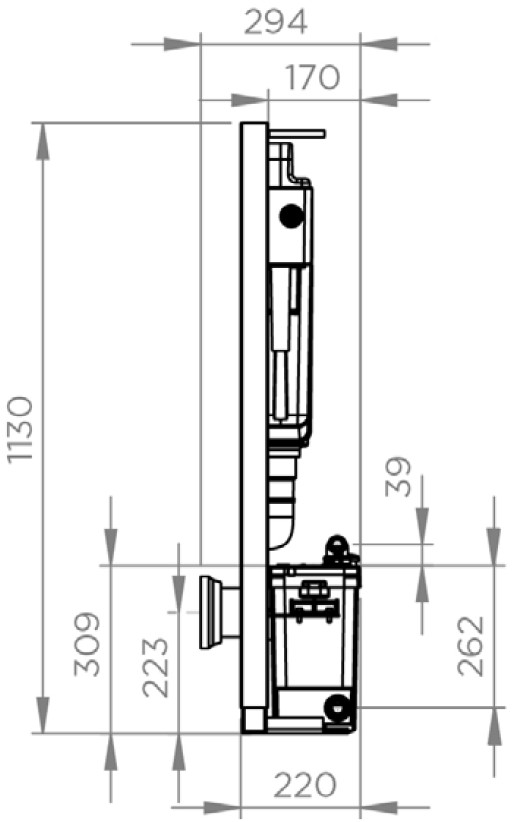

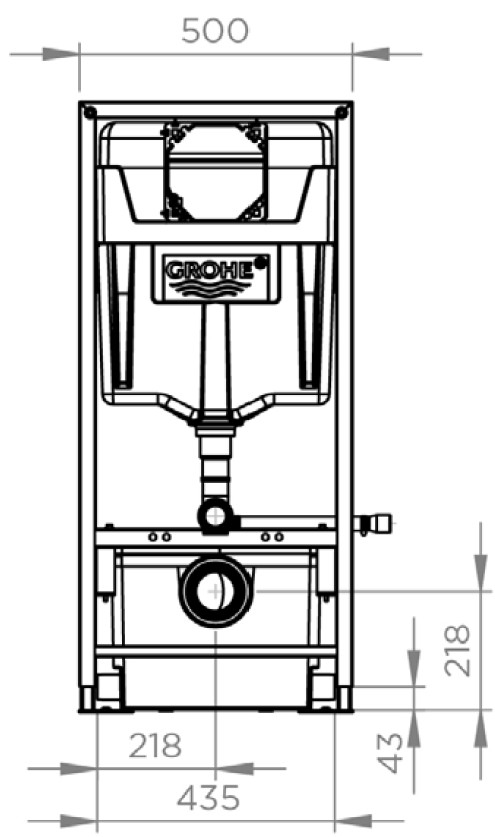

- Dimensions — 1130 (H) x 500 (W) x 220 (D)mm
- 5 year warranty*
What’s Included:
- 1x Saniflo Saniwall Pro Up Macerator Pump
- 1x Built-In Frame System
- 1x Integrated Dual Flush Cistern
- 1x Tileable Wall Panel
- 1x Flush Plate - Chrome
- Please note: the toilet is not included.
The Saniflo Saniwall Pro Up Macerator Pump with Frame and Flush Plate is a complete concealed solution for wall-hung WC installations. Designed for use where gravity drainage isn’t practical, it pumps waste up to 5 metres vertically and 100 metres horizontally through small bore pipework.
With three inlets in total, it can take waste from a WC plus a basin, shower, or bidet, making it ideal for loft conversions, basements, and bathroom refurbishments. Quiet, efficient, and easy to service, it’s a reliable choice. Install with confidence today.
3 Inlets:
This 3 inlet macerator connects to a toilet and 2 of the following items:

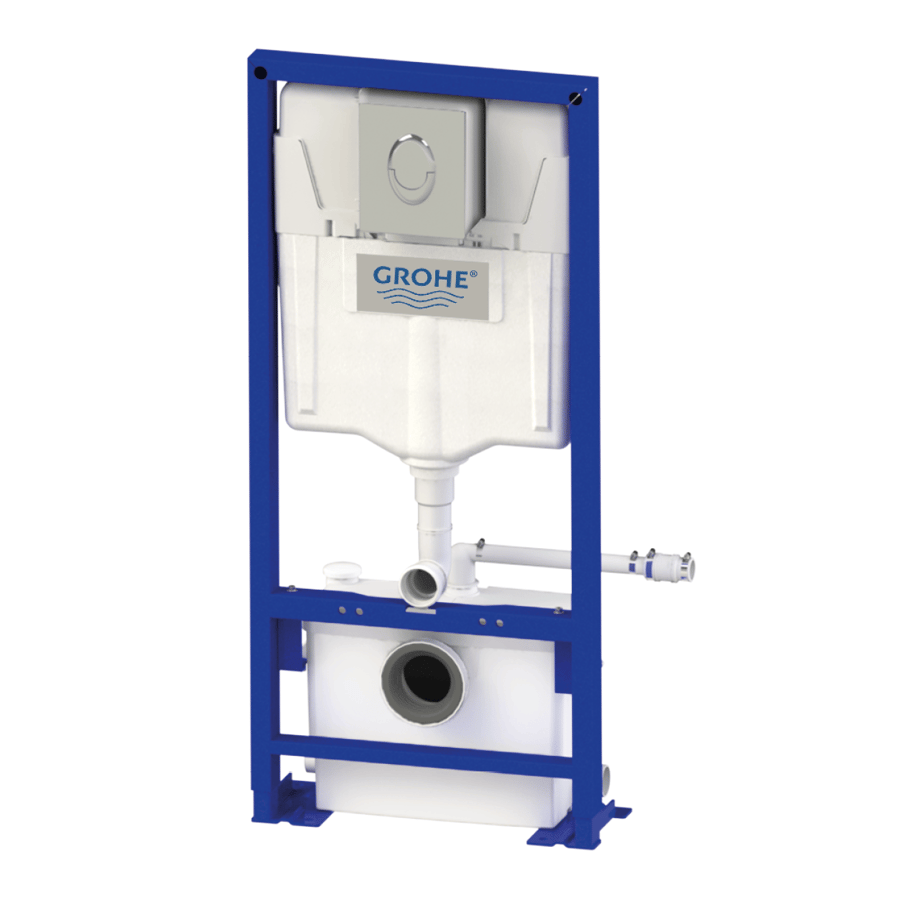

Installation with Integrated Frame System
With three inlets for added connection flexibility, it’s ideal for full bathroom setups where space is tight. The pre-configured design helps speed up installation, making it a practical choice for tiled, in-wall applications.
Supplied with a sturdy frame and flush plate, it provides a complete solution in one box.
Easy Access for Servicing & Maintenance
The design allows easier access to both the cistern tank and electrical connections, helping to reduce maintenance time if servicing is required. This means fewer complications and less disruption to finished bathroom spaces.

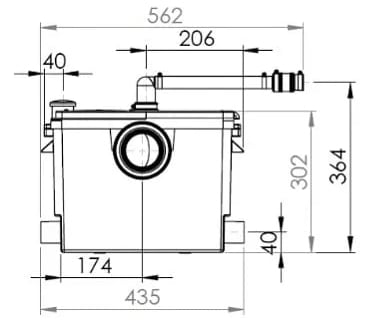

Built-In Macerator Pump
The integrated macerator features a 400W motor and cutting blade system to grind waste into pulp for discharge through 22, 28, or 32mm pipework. It allows installation where conventional soil stacks aren’t accessible, giving greater flexibility.
5m Vertical & 100m Horizontal Discharge
Capable of pumping waste up to 5 metres vertically and 100 metres horizontally, the Saniwall Pro Up offers impressive reach. This makes it particularly useful for basement bathrooms, loft spaces, or remote locations within a property.
Built-In Frame with Adjustable Feet
The integrated frame system supports most wall-hung WCs (not supplied) and features adjustable feet for variable pan height. With mounting centres between 180–230mm, it offers flexibility to suit different installation requirements.
Tiling-Ready Finish with Flush Plate
The Saniwall Pro Up tiled version comes with magnetic tabs to create a removable hatch, allowing you to tile the section behind the WC while still maintaining easy access for servicing and maintenance.
Technical Information:
- Inlet connection size: 40mm
- Outlet connection size: 22/28/32mm
- Motor power: 400 Watts
- Flow rate: 90 litres per minute
- Discharge pipework: 22/28/32mm
- Inlet pipework: 40mm
- Glass panel total width: 560mm
- Mounting centres for WC pan: 180–230mm
*All Saniflo warranties must be registered directly with Saniflo. Please click here to register.
