Sync Energy Pro Bollard Smart EV Charger 11kW Dual Socket (PDQ) EVPCFSM211NBGRP-02

£2976.92 (Inc. VAT)

5 - 6 Days From Order

FREE DELIVERY

Specifications

 Back

Technical

Sync Energy Pro Bollard Smart EV Charger 11kW Dual Socket (PDQ) EVPCFSM211NBGRP-02 – Technical Specifications
MPN EVPCFSM211NBGRP-02
Mounting Floor
Connection Type Type 2 (IEC 62196) Charging Socket
Max. AC Charging Output(s) (kW) 2x 11
Range Pro
Type EV Charger
Waterproof Rating (IP) IP65
Solar Charging Compatible Yes
Corrosion & Fire Resistant Yes
Phase Unit Three
Unit Material Galvanised Steel & Aluminium & Polycarbonate
Power Output (Amps) 32
Wi-Fi Compatibility Yes
Colour Black
4G Connectivity Yes
Google Assistant/Alexa Compatible No
Wattage 11 kW
Tethering Untethered
Card Payment Terminal Yes
Warranty (Years) 5

Dimensions

Sync Energy Pro Bollard Smart EV Charger 11kW Dual Socket (PDQ) EVPCFSM211NBGRP-02 – Dimensions Specifications
Height (mm) 1319
Width (mm) 264
Depth (mm) 264

Description

Features & Benefits:

  • Twin 11kW Type 2 sockets — charge two compatible EVs simultaneously
  • Contactless payment terminal — offers convenient, user-friendly charging sessions
  • Loop in/loop out terminals — support flexible commercial installation and future expansion
  • Built-in MID meter and true PEN protection — delivers safe, compliant operation
  • 4G connectivity with Monta App — monitor and manage charging remotely
  • PAS 1899 compliant design — supports accessible EV charging installations
  • Dimensions: 1319 (H) x 264 (W) x 264 (D)mm
  • 5 year warranty

What's Included:

  • 1x Sync Energy Pro Bollard Smart EV Charger
  • 2x 11kW Type 2 Sockets
  • Accessories pack containing:
  • Assembly Screws
  • Anti-Tamper Bit
  • 2x RFID Key Fob

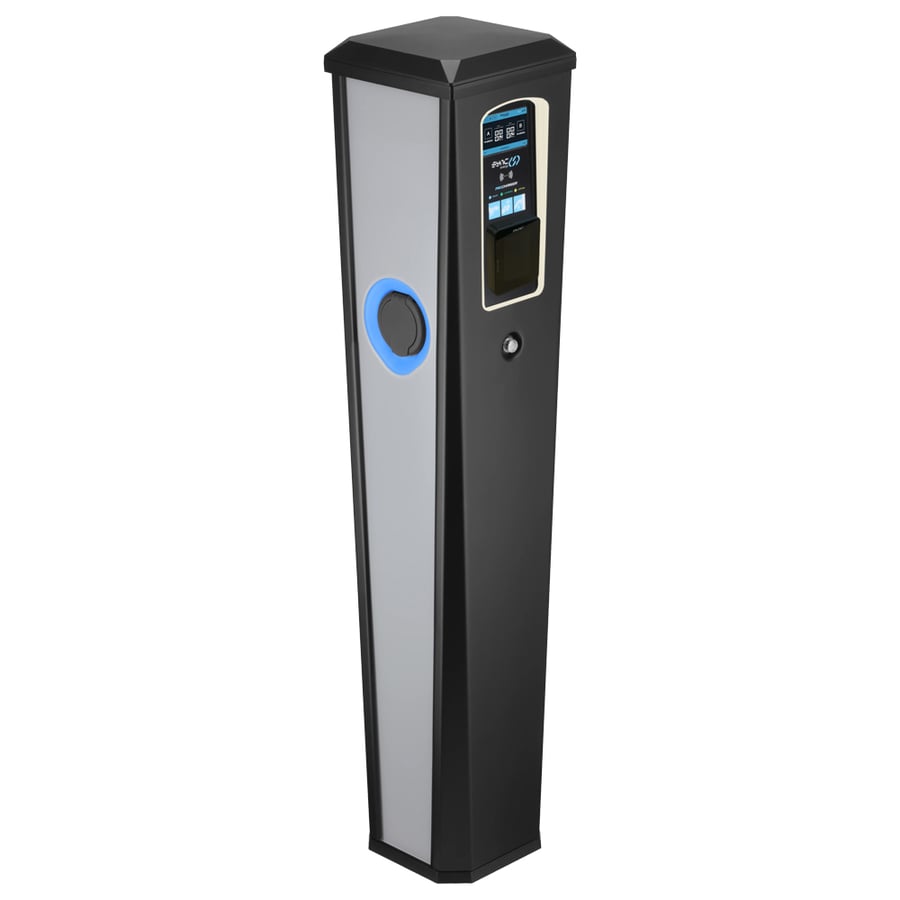

The Sync Energy Pro Bollard Smart EV Charger is a powerful commercial electric car charging solution, designed to charge two vehicles simultaneously with twin Type 2 sockets. Offering a range of innovative features, including 4G connectivity and Monta App compatibility, this EV charger provides installers and site owners with a smart, flexible car charging solution that's easy to manage.

Built with commercial applications in mind, it combines integrated safety features, accessible PAS 1899-compliant design and future-ready loop in/loop out wiring. Complete your renewables project today with this electric car charger.

Twin Socket Charging

With twin Type 2 sockets, this bollard charger allows two compatible electric vehicles to charge at the same time. It's an efficient solution for commercial locations where maximising charger availability is essential.

Simple Installation and Future Expansion

Designed with installers in mind, the charger features loop in/loop out terminals supporting up to 50mm² cable and 130A input looped wiring. This flexible design helps simplify installation while making future expansion easier.

Smart Charging

Integrated 4G connectivity allows users to monitor and manage charging sessions remotely through the Monta App or another OCPP 1.6 compatible back-office platform. This provides flexible control over charging, user management and reporting for commercial installations.

Contactless Payment Option

A built-in contactless payment terminal, RFID functionality and QR code access offer multiple authentication and payment options, providing a convenient charging experience for employees, visitors and members of the public.

Reliable Safety and Accessibility

Built-in MID meters, MCBs and true PEN fault detection provide dependable protection during operation. The charger also meets PAS 1899:2022 accessibility standards, helping create inclusive Electric Car Charging installations for commercial environments.

Professional Bollard Design

Finished in a sleek black, the Pro Bollard Smart EV Charger delivers a modern, professional appearance that complements commercial premises while maintaining excellent visibility.

Order Yours Today

Upgrade your electric car charging with the Sync Energy Pro Bollard Smart EV Charger. Order today for a modern, renewable installation.

Documents

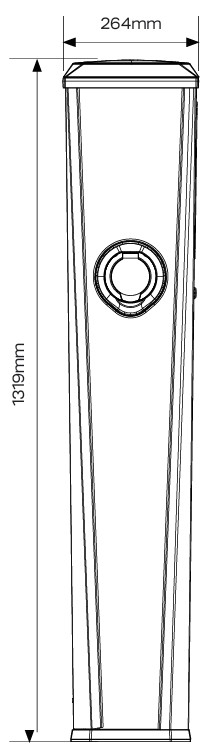

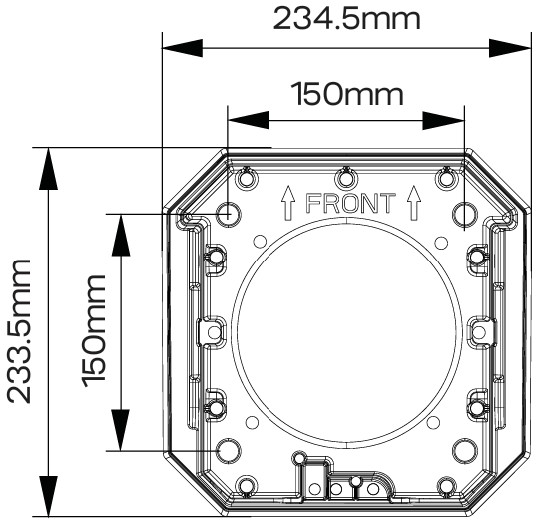

Technical Drawings
