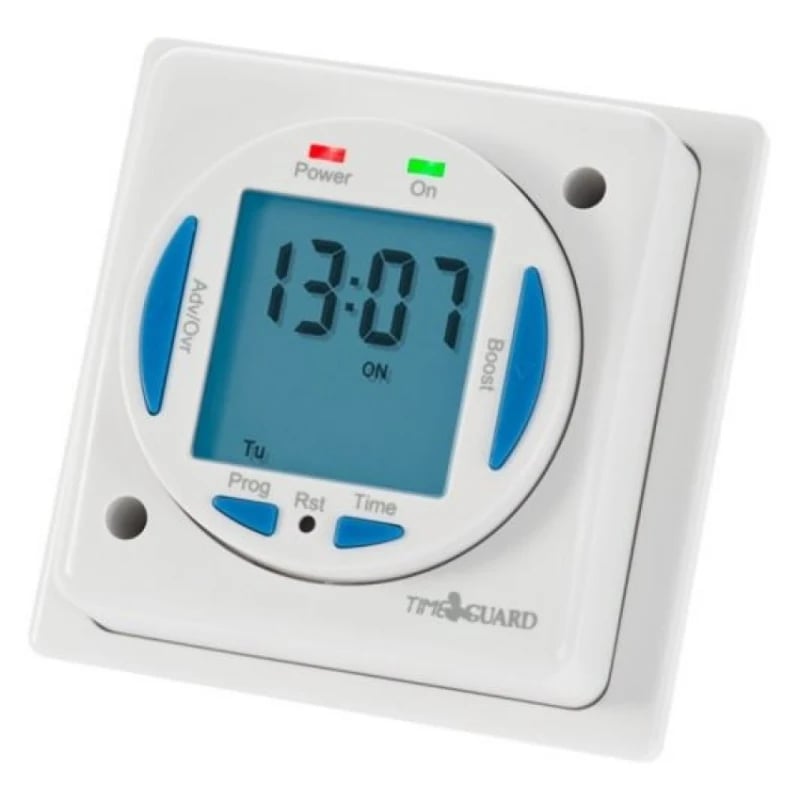

Timeguard 24-Hour/7-Day Compact Electronic Immersion Heater Timeswitch - NTT04

£42.83 (Inc. VAT)

10 In Stock

FREE DELIVERY

Description

Key Features

  • 16(4)A load rating
  • 4 ON/4 OFF easy-set program periods per day, 28 ON/28 OFF programs per week
  • Shortest switching time: 1 minute
  • Extra large 'Easy View' screen with blue LED backlighting
  • Red LED 'Mains ON' and green LED 'Output' indicators for easy viewing
  • Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (cfl's)/100W LED lighting. Not suitable for discharge lighting
  • Large, easy-push program buttons
  • Self-cancelling override button to next program change
  • Optional 1- and 2-hour boost button
  • Automatic Summer/Winter changeover
  • 720 hours rechargeable memory back-up
  • Fits a standard flush or surface mount box min. 32mm deep
  • Voltage-free contacts
  • Warranty: 3 years

Timeguard 24-Hour/7-Day Compact Electronic Immersion Heater Timeswitch - NTT04 Overview

This Timeguard timeswitch includes an optional 1- and 2-hour boost button, automatic summer/winter time changeover, voltage-free contacts, a minimum of a 1-minute switching time, 4 ON/4OFF easy-set program periods daily and 28 ON/OFF programs weekly and more.

User-Friendly Interface

Thanks to the large, easy-push program buttons, self-cancelling override button and easy view screen with blue LED backlighting, this timeswitch is user-friendly and simple to operate.

Deciding on the correct sort of Heating Controls is a major decision. After you determine that Programmers & Time Switches are the best answer then the Timeguard NTT04 is absolutely worth factoring in to your final decision.

Documents

Specifications

 Back
Timeguard 24-Hour/7-Day Compact Electronic Immersion Heater Timeswitch - NTT04 Specifications
Voltage (V) 230
Range Compact
Width (mm) 75
Height (mm) 80
Depth (mm) 62
Warranty (Years) 3
EAN 5012483012321
MPN NTT04
Product Code PN140560
Timeswitch Type Immersion Heater Timeswitch
Colour White
Operating Temperature Range (°C) 0–40
Time Period 24 Hours
