Note: Images for illustration purposes only. Design may vary. Please see contents list for exact products included in this pack.

Key Features

• Output: 3–9 kW
• ErP rating: A+++
• Dimensions: 1167(W) x 407(D) x 795(H) mm
• Weight: 102 kg
• Temperature output: 20–75°C
• Touchscreen interface
• Built-in 4G sim card (no Wi-Fi or CAT 5 cables required)
• Warmlink app control
• Max. volume: 43 dBA
• R290 refrigerant gas
• Variable speed-inverter driven compressor
• Qualifies for grants available in England, Scotland, and Wales (subject to terms and conditions)
• Low GWP (Global Warming Potential) of 3

Guarantee

• 5 years

What's Included

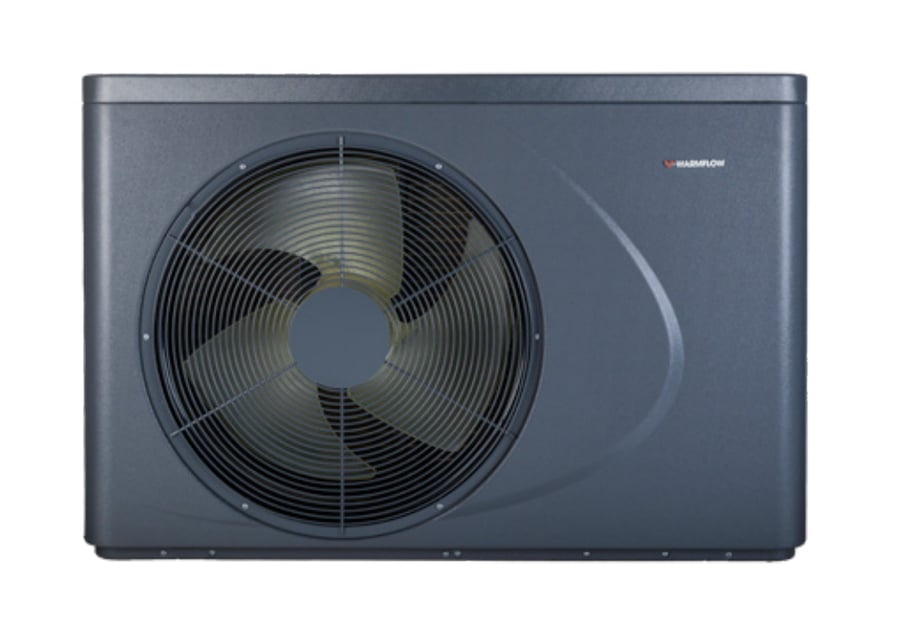

• Warmflow Zeno 9kW R290 Air Source Heat Pump - AS01-R290
• 4G sim card
• 170-litre heat pump cylinder
• Full flow 3-port valve body & actuator
• Adey Magnclean 1"BSP
• Ethylene Glycol conc 25l drum
• 24-litre round expansion vessel c/w bracket
• 24-litre volumiser c/w bracket
• Flexi foot support (x 2)
• 1" x Y strainer
• 1 x 500 mm flexi hose kit
• 2 x 1" Isolating ball valve

This Warmflow air source pump has an emphasis on being environmentally-friendly, with a low GWP (Global Warming Potential) of 3. It uses R290 refrigerant gas for a lower impact on global warming compared to synthetic products and provide efficient heat transfer.

Quiet Operation and High Temperature Output

This Warmflow Zeno air source pump has a 43 dBA volume output for quiet operation during use. It also offers a water temperature range between 20 and 75°C, eliminating the need for an immersion back-up.

Touchscreen Interface

It features a full-colour touchscreen display for simplified operation, allowing you to conveniently make adjustments and setting changes when required. There's even the option for 2 levels of access (one for the homeowner and another for a heating engineer).

Built-In 4G Sim Card and App Control

Each unit includes a built-in 4G sim card, with no need for a Wi-Fi connection or CAT 5 cables. With this capability, you'll receive remote control to make adjustments or read diagnostics at the touch of a button. There's also the option to use the Warmlink app for additional features and remote management.

Integrated Heat Pump

It's equipped with a Grundfos pump for the heating circuit to modulate flow and accurate match the heating demand with keeping in mind efficiency.

Variable Speed Inverter

This unit includes a variable speed-inverter compressor to provide high efficiency that runs at the heart of the system. Once you switch on the unit, the compressor speed increases slowly so there's no high starting current.
