Key Information

• Suitable for wall mounted toilets — ideal for modern concealed installation projects
• Ultra-compact 360mm frame width — perfect for bathrooms where space is limited
• Durable steel construction — load tested to support up to 400kg
• Anti-corrosion coated frame — built for long-lasting reliability
• Double-wall insulated cistern — helps reduce condensation and improve performance
• Large front access panel — allows easy servicing and maintenance
• Rear access capability — suitable for service duct installations
• Tool-free flush plate installation — simple ratchet system adjusts automatically to wall thicknesses from 13–50mm
• Lightweight design — easier handling and installation
• 10-year guarantee — manufacturer-backed peace of mind

What's Included

• Wirquin Initio Wall Hung WC Frame
• Integrated insulated cistern
• Fixing components

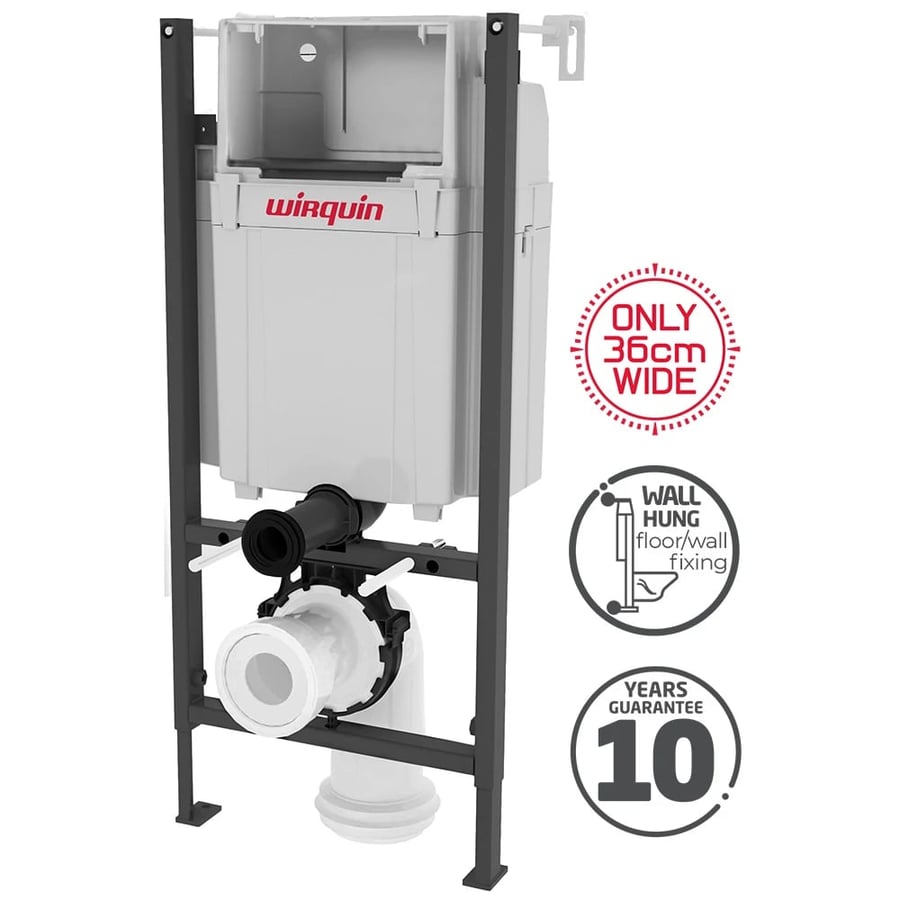

The Wirquin Initio Wall Hung WC Frame has been designed to provide a reliable and space-saving solution for modern bathrooms. Measuring just 360mm wide, it's an excellent choice for compact installations where every centimetre counts, making it ideal for en-suites, cloakrooms, and smaller bathroom layouts.

Manufactured from anti-corrosion coated steel, the frame combines lightweight construction with impressive strength. Tested to withstand loads of up to 400kg, it provides a secure and dependable foundation for wall mounted toilets while maintaining a slim profile.

The innovative double-wall insulated cistern helps minimise condensation, while the large front access panel allows quick and convenient maintenance when required. Additional rear access makes the system suitable for service duct installations, offering greater flexibility for installers.

Installation is made even simpler thanks to the tool-free flush plate fitting system. The clever ratchet mechanism automatically adjusts to wall thicknesses between 13mm and 50mm, helping to reduce installation time while ensuring a secure fit.

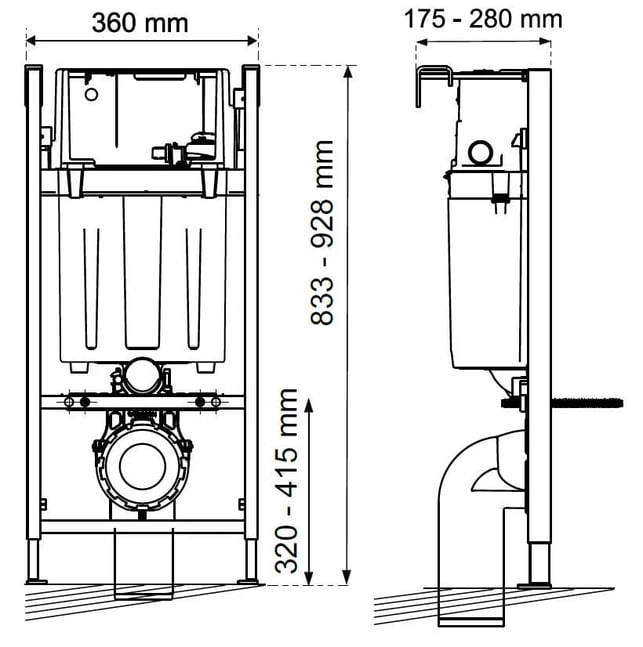

Technical information:

• Fixing: Wall hung
• Pan height adjustments (mm): 370 to 580 (on finished floor)
• Pan centres (mm): 180 or 230
• Inlet valve: BS 1212-4 Aquasave Air
• Flush valve: 2‘‘ jollyflush, dual flush 6/4L
• Water saving: dual flush jollyflush
• Load tested (kg): 400
• Wall thickness (push plate) mm: 13 - 50
