Features & Benefits:
- Convenient waterproof surface coating
- Built-in drain base for secure installation
- Works with a wide variety of tile types
- Slim 30mm profile for level-access fitting
- Can be trimmed to fit your space
- Constructed from cement-coated XPS (extruded polystyrene)
- Size: (L) 1600 x (W) 900 x (H) 30mm
- Linear drain length: 300mm
- 15-year warranty
What's Included:

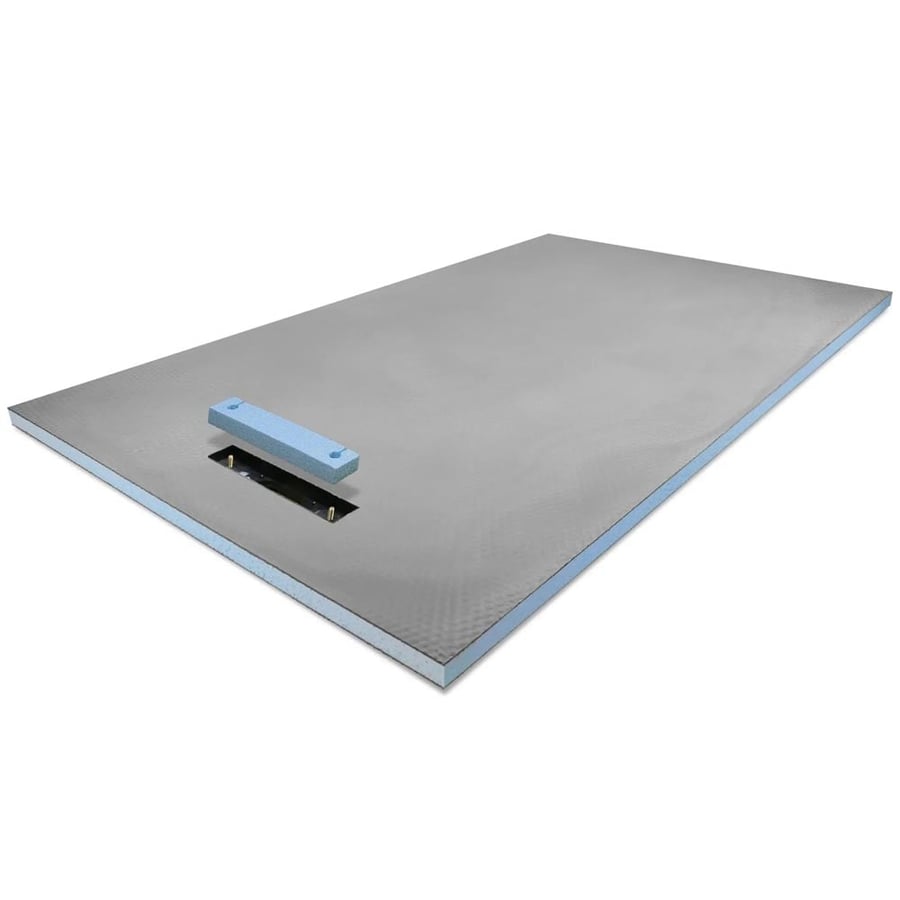

Bring a blend of innovation, practicality, and long-term waterproofing to your bathroom with the Diamond Wet Room Shower Tray. Designed for straightforward installation and dependable drainage, it works seamlessly with a variety of tiles to deliver a clean, stylish finish. Its slim, level-access design ensures a comfortable and accessible showering experience, while the robust construction provides years of reliable use.
Versatile installation on different floor types
Whether you have a concrete floor, timber floor, or another base, this tray is engineered to adapt. It can be installed for surface mounting, flush level-access, or as part of a combined tray and subfloor system – making it ideal for a wide range of bathroom layouts.
Tile-ready finish
The waterproof, cement-coated surface is ready for direct tiling and is compatible with porcelain, ceramic, and natural stone tiles. This makes it easy to coordinate with your chosen bathroom style while maintaining a watertight seal.
Customisable sizing
The tray can be cut down to the required dimensions without affecting its strength. For the best results, a fine-tooth hand saw is recommended.
Integrated drainage system
The drain base is pre-fitted to help prevent leaks and features a 2-inch solvent-weld outlet compatible with standard UK and 1½-inch non-standard pipes. A removable hair trap helps avoid blockages, while the generous grate allows a high flow rate of 60 L/min. Optional tileable drain kits are available for a fully seamless look.
Tileable drain kits and installation accessories are sold separately.
Lightweight yet durable build
Manufactured from extruded polystyrene (XPS) with a tough cement coating, this tray offers strength, excellent insulation, and easy handling. The XPS core resists water absorption, while the cement surface ensures strong tile adhesion for long-term performance.
Specifications:
- Compressive Strength @ 10% Deflection: 250 kPa
- Compressive Strength @ 1% Deflection: 100 kPa
- Bending Strength: 350 kPa
- Thermal Conductivity: 0.031 W/m·K
- Dimensional Stability @ 23 °C/50% RH: DS (N) 2
- Dimensional Stability @ 23 °C/90% RH: DS (23,90) 1
- Capillary Water Absorption: 0
- Water Absorption by Immersion: 0.1%
- U-Value: 0.83 W/m²·K
