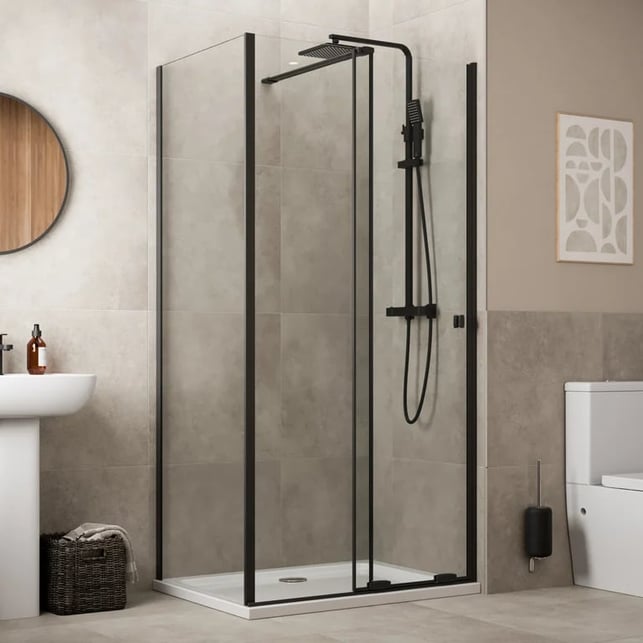

Diamond Frameless Sliding Shower Enclosure 1000 x 900mm with Low Profile Tray - 8mm Black

£414.00 (Inc. VAT)

In Stock

FREE DELIVERY

Description

Key Information:

  • Lightweight aluminium frame
  • 1950mm tall panel height
  • 8mm toughened safety glass
  • Smooth top & bottom rollers
  • Stainless steel handle
  • Reversible doors
  • CE marked
  • 10-year guarantee (excludes seals and moving parts which are covered for 12 months)

What's Included:

  • Diamond Frameless Sliding Shower Enclosure 1000 x 900mm
  • 900mm side panel
  • Hydrolux Low Profile 1000 x 900mm Shower Tray with Waste

Elevate your daily routine with the Diamond Frameless Sliding Shower Enclosure, a premium shower solution designed to enhance your showering experience while adding a touch of elegance to your bathroom décor. Crafted with style and functionality in mind, this stylish sliding shower enclosure is the perfect addition to any bathroom.

Space-Saving Sliding Shower Door

This sliding door shower door effortlessly fits into large spaces to create a comfortable showering space. These stylish, sliding doors glide across the rail on rollers, thus creating a space-saving solution for your bathroom as the door doesn't need to open into the room itself.

Concealed Fixings for a Minimalist Installation

The innovative cover strip that comes with these enclosures conceals all of the screws and fixings neatly for a flawless look. The cover strip is extremely easy to secure to the frame and gives the whole bathroom a high end look of perfection.

Easy Clean Glass Panels

A special coating has been applied to the glass panels to ensure cleaning is fast and easy. A simple wipe-down will bring back crystal clear glass time and time again.

Extra Tall 1950mm Glass Panels

Standard shower enclosure panels tend to be 1750 - 1800mm high, but these are a full 1950mm high giving you extra splash protection and a fantastic high-end look.

8mm Thick Thermally Toughened Safety Glass

The 8mm glass used is of the highest standard. It conforms to EN12150-1, meaning it has been rigorously tested and thermally toughened for superior safety and strength.

Top & Bottom-Mounted Door Rollers

These 8mm shower doors need to operate easily and smoothly which is why they’re fitted with high-quality rollers mounted at the top and bottom of the doors. They use stainless steel & aerospace-grade plastic parts to create a set of rollers that are silky smooth, they even have a quick-release mechanism on the bottom rollers, for easy cleaning of the panels.

Water-Tight Magnetic Closing Mechanism

The last thing you want when using a shower is for water to escape the enclosure. These doors feature a watertight magnetic closing mechanism that secures the doors to stop any spray from your shower from escaping.

Hydrolux Low Profile Shower Tray with Waste

Designed for modern bathrooms, the Hydrolux Low Profile Shower Tray combines exceptional strength, lightweight construction, and practical installation benefits to deliver outstanding performance for any showering space.

Engineered to withstand loads of up to 4000kg, every Hydrolux shower tray is rigorously tested for exceptional durability and reliability. Despite its impressive strength, a typical 1200 x 800mm tray weighs just 18kg, making it up to 60% lighter than traditional stone resin alternatives and far easier to handle during installation.

Sustainable by Design

Unlike many shower trays that rely on chipboard or wood-based reinforcements, Hydrolux trays feature an innovative Flax Particle Board core, offering excellent structural integrity with a lower environmental impact. Fully compliant with all relevant UK and European standards, including CE, EN 14527, EN 198 and REACH regulations, you can buy with confidence.

  • Low profile shower tray with waste
  • 60% lighter than stone resin trays
  • Can be easily cut to size
  • Universal shower enclosure compatibility
  • 10 year guarantee for peace of mind
  • Please note: while it is possible to cut an acrylic capped tray, a cut edge is potentially exposed to water ingress.

High-Flow Waste

  • Rate of 32 litres per minute.
  • Standard 40mm connection
  • Vented dome to allow higher flow
  • Top access for easy maintenance
  • Quick-release inner unit for ease of cleaning

Important installation information: Please note, it's important to consider the minimum and maximum adjustment measurements. The enclosure doesn't sit flush to the side of a shower tray as this allows space for tiling.

Specifications

 Back

Technical

Diamond Frameless Sliding Shower Enclosure 1000 x 900mm with Low Profile Tray - 8mm Black – Technical Specifications
Door Type Sliding
Type Shower Enclosure
Enclosure Width 1000 mm
Enclosure Height 1950 mm
Enclosure Depth 900 mm
Glass Thickness 8 mm
Frame Style Frameless
Tray Low Profile
Frame Colour Black
Easy-clean Glass Yes
Reversible Door Yes
Glass Effect Clear
Installation Type Corner (2 wall/ 2 glass)
Number of Panels 2
Support Arms Included 1
Waste Included Yes
Side Panel 900 mm
Trim Colour Black
Range Diamond
Guarantee (Years) 10
Sub Type Sliding Shower Door

Documents

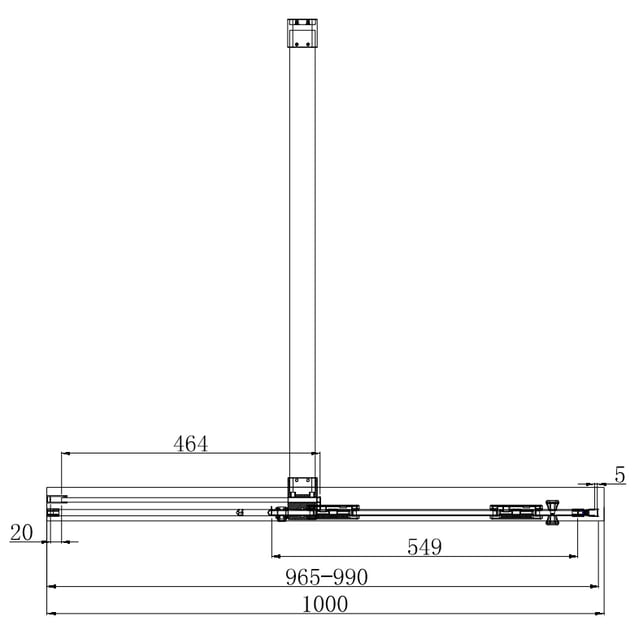

Technical Drawings
