Ideal Esprit Eco2 35kW Gas Combi Boiler with Horizontal Flue & Installer Boiler Pack

£1060.54 (Inc. VAT)

In Stock

FREE DELIVERY

Description

Boiler Key Features

  • Functions — a preheat function, a timer, a digital operating status, and a diagnostic display
  • ErP A rating — seasonal efficiency of 94% for lower running costs and fuel bills
  • Domestic hot water preset — fast hot water response
  • OpenTherm connection — sends data from the boiler to a thermostat
  • Frost protection — prevents the boiler and pipework from freezing in cold weather
  • Simplified installation — low lift weight, compact size, and fast-fix flue turret connections
  • Easy access to all components — for easier fixing/inspections
  • NOx Class 6 — low emissions
  • Grundfos pump — quiet, reliable, and efficient

Thermostat Key Features

  • 7-day programming — pre-set temperatures a week in advance
  • 4-time schedules daily — choose multiple different temperatures daily
  • Large display — easy to read

Carbon Monoxide Alarm

  • 10-year battery — provides continuous power
  • Reliable carbon monoxide detection — accurately detects carbon monoxide levels in the air
  • Audible alerts — notify you of potential CO presence
  • Easy installation — no wiring required
  • Compact design — unobtrusive size blends into rooms
  • Test and Silence buttons — check the detector's functionality when needed

Micro Filter Key Features

  • Suitability — vents, drains, and flushes
  • Pipe cut-out — 98mm
  • Compression — 22mm
  • Isolation valves — 90°

Black and Yellow Protector Key Features

  • Prevents wear and tear — stops magnetite and other deposits from forming
  • Protects central heating systems — enhances a boiler's efficiency
  • Treats 125 litres — equivalent to 15 radiators
  • Prevents cold spots in radiators — helps maintain system efficiency and reduce fuel bills

Red and Black Cleaner Key Features

  • Removes system corrosion and limescale deposition — high-concentrate formula
  • Powerful chemical cleaner — removes central heating system sludge and debris
  • Part L building regulation compliant and compatible with BS7593 — for peace of mind
  • Helps reduce heating and maintenance bills — restores heating efficiency

Shock Arrestor Key Features

  • Prevents long-term effects of water hammer — reduces shocks to pipes, eliminating bangs/vibrations
  • Material — stainless steel
  • Easy installation — provides long-term benefits

Flue Key Features

  • Horizontal orientation —  for installation through a wall to the rear, left, or right of the boiler
  • Quick installation — all fixed included
  • Wall compatibility — up to 645 mm thick
  • Dimensions — 600(L) x 60/100mm (D)

Guarantee

  • 5 years

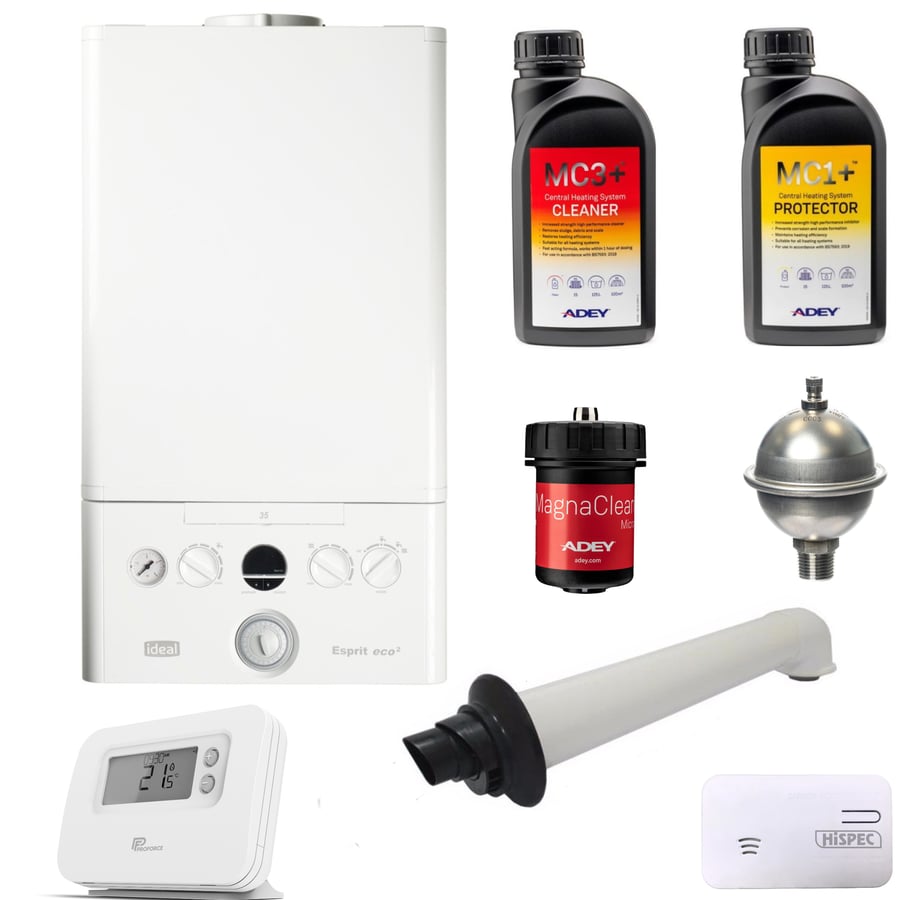

What's Included

  • Ideal Esprit Eco2 35kW gas combi boiler446278
  • Ideal Esprit Eco horizontal flue kit 600mm (L) - 678294
  • Adey MC1+ protector black and yellow 500ml - 483325
  • Adey MC3+ cleaner red and black 500ml - 289257
  • Altecnic 0.16L shock arrestor - 102606
  • Adey Magna clean micro filter - 167675
  • Pro Force wireless programmable thermostat - 183679
  • Hispec battery-operated CO detector alarm - 627910

This all-in-one boiler pack includes a 35kW gas combi boiler, a carbon monoxide alarm, a thermostat, a flue kit and a range of accessories — so you’ve got everything you’ll need in one neat bundle, without having to source each item separately.

Fast Hot Water on Demand

The Ideal Heating combi boiler features a preheat function, so hot water’s ready as soon as it’s needed.

OpenTherm Ready

It comes with built-in OpenTherm support, making it easy to pair with a compatible thermostat for precise, responsive temperature control and a dependable connection.

Simple Installation

Thanks to its compact dimensions and lighter build, it’s easier to install and can be neatly housed in a cupboard. It also includes quick-fit flue turret connections to help speed up fitting.

NOx Class 6 & ErP A Rated

With a NOx Class 6 rating, it’s designed to help reduce emissions while improving efficiency. It’s also ErP A-rated, delivering around 94% efficiency — helping to cut gas usage without compromising performance.

Programmable Thermostat

The Pro Force wireless thermostat offers seven-day scheduling and allows you to set up to four temperature levels per day. It also features a large display, so it’s easy to read at a glance.

Carbon Monoxide Alarm

The Hispec battery-powered CO alarm offers dependable long-term use, with a battery life of up to 10 years. It monitors carbon monoxide levels accurately and sounds a loud alert if a risk is detected.

There’s no wiring required, so it’s straightforward to install, and the Test and Silence buttons let you check and control it whenever needed.

22mm Magnetic Filter

The Plumbright 22mm magnetic filter helps protect your system by capturing sludge, rust and metallic debris. It features a powerful 11,000 gauss neodymium magnet and a 360-degree installation design for flexible fitting.

Order Yours Today

Designed with efficiency in mind, this 35kW gas boiler is well suited to most one- to three-bedroom homes. Add it to your basket today and avoid the hassle of buying each component individually.

Specifications

 Back

Technical

Ideal Esprit Eco2 35kW Gas Combi Boiler with Horizontal Flue & Installer Boiler Pack – Technical Specifications
Fitting Location Internal
Weight 33 Kg
EAN 5056902423480
MPN 297874
Product Code PN297874
Boiler/Product Type Combi Boiler
Sub Type Gas Combi
Colour White
Guarantee (Years) 1
Width (mm) 395
Height (mm) 700
Depth (mm) 278
Heat Output 35 kW
Fuel Type Natural Gas
Mounting Wall
Pack Contents Installer Boiler Pack
Flue Type Horizontal Flue
Controller Type Pro Force Wireless Programmable Thermostat
Thermostat Type Wireless Thermostat
ErP Rating ErP A
Flue Size 60/100mm
DHW Connections 15mm Compression
