Key Information:

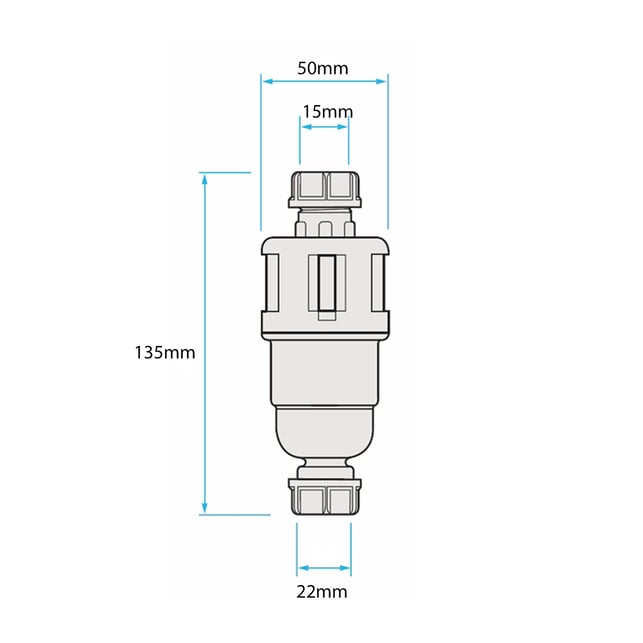

• Dimensions — 135mm (H) x 50mm (W) x 22mm (D)
• Dry trap tundish — Prevent backflow and ensure proper drainage
• Max temperature — 99°C
• Max pressure — 16.0 bar
• Type AA backflow prevention —  For robust protection from potable water contamination
• Spring-loaded seat —  Prevents odours and gases from travelling backwards
• 1-year guarantee

What's Included:

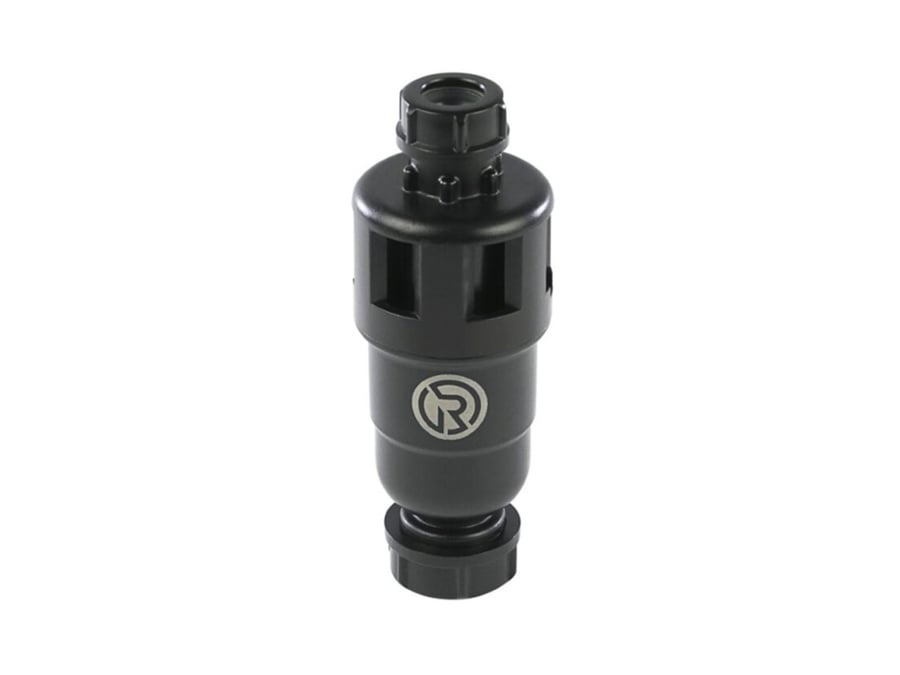

• Reliance RWC 15mm x 22mm Dry Trap Tundish - TUND600005

Upgrade your water heater with the Reliance RWC 15mm x 22mm Dry Trap Tundish. Made with efficiency in mind, this is the perfect choice for a safe system.

What is a dry trap tundish?

A dry trap tundish handles discharge from your hot water cylinder, but unlike a traditional tundish, a dry trap tundish features a trap mechanism that prevents the release of odours or gasses.

Impressive performance and efficiency

The Reliance RWC 15mm x 22mm Dry Trap Tundish boasts backflow prevention for Category 5 fluids, an AA type air gap, and a spring loaded mechanism. Additionally, the tundish incorporates a waste trap, saving time and cost when installing a discharge pipe into a soil or waste pipe. It is designed to take any discharge that may occur from either a Pressure Relief Valve or a Pressure & Temperature Relief Valve fitted to an unvented hot water cylinder. The specially designed seal prevents odours or gases from entering the building, while still allowing discharged water to be conveyed to waste safely.
